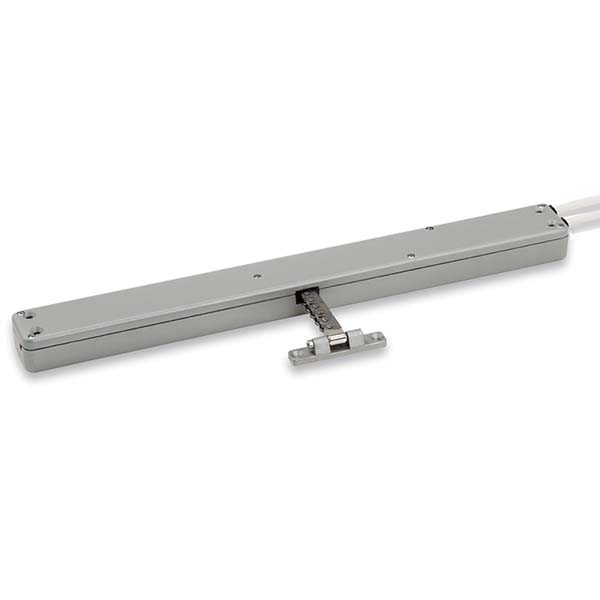

Ultraflex Control Systems UCS VEGA RF Rain

Call us for latest pricing

Brand: Ultraflex Control Systems | Manufacturer Part numbers: 41015D, 41016E, 41017F

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Skylights, roof windows
  • Pivot frames
  • Cupolas
Specifications at a glance:

Traction force: Programable up to 300 N

Thrust force: Programable up to 300 N

Strokes: Programable up to 300 mm

Protection Class: IP 30

Voltage supply: 110v – 240v AC

Colours Available:

Available in black

Black

Available in white

White

Available in Silver Anodised

SAA

Description

Ultraflex Control Systems VEGA RF Rain
MAIN FEATURES:
High performance in small die-cast aluminum casing (45 x 32 mm), powder painted.
Chain in double stainless steel links. Chain exit in central position.
Quick and easy installation: the manual closing position regulation is not required.
The stop in closing position is regulated by an electronic limit switch control.
Electronic stop in the intermediate positions in case of overload.

VEGA RF RAIN version has an integrated radio receiver and it is supplied with radio remote control; the transmitter controls simultaneosly all actuators within its field of action. Availbale on request actuators and remote controls with different radio codes. Rain sensor and thermostat can be connected directly to the actuator.

Additional information

Manufacturer

Brand

Ultraflex Control Systems
Ultraflex Control Systems - UCS Products

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
  • Roof windows
  • Cupolas
Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

UCS Vega RF Rain
Voltage Supply:

110 VAC – 240 VAC
Current Absorbtion (Max load):

0,3 A – 0,15 A
Operation:

RF AND THREE WIRES (OPEN, CLOSE, COM)
Max Force:

300 N
Available stroke:

300 MM
Speed:

7 MM/S
Duty Cycle:

50%
Limit Stop:

ELECTRONIC
Safety Stop:

ELECTRONIC
Parallel Connection:

YES
PROTECTION CLASS:

 IP30
Cable:

2 X 1,5 M – 4 WIRES + EARTH AND 3 WIRES
