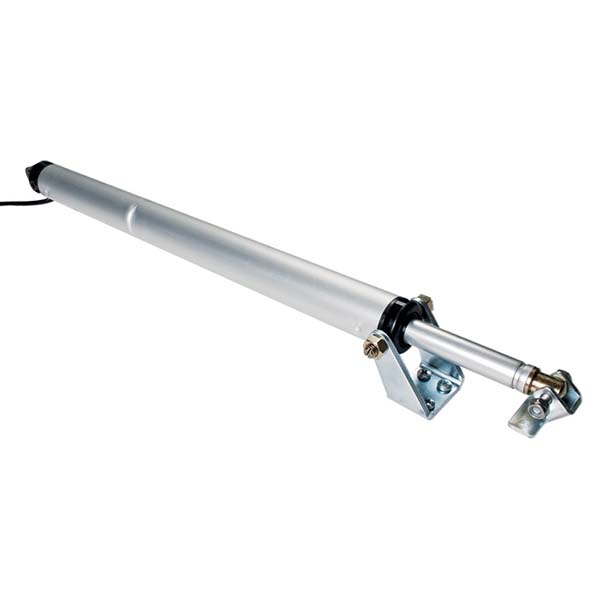

Ultraflex Control Systems UCS ULYSSES RWA

Call us for latest pricing

Brand: Ultraflex Control Systems | Manufacturer Part numbers: 41767F, 41718I

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Skylights, roof windows
  • Pivot frames
  • Cupolas
Specifications at a glance:

Traction force: 650 N

Thrust force: 650 N

Strokes: 180 / 300 mm

Protection Class: IP 65

Voltage supply: 24v DC

Colours Available:

Available in Silver Anodised

SAA

Description

Ultraflex Control Systems ULYSSES RWA
MAIN FEATURES:
Minimum size: external diameter 34 mm
Load transmission by rigid spindle. Particulary indicated to operate sun blades.
High protection from atmospheric agents (IP65).

Supplied with steel end bracket and connector. Front or back fixing possibility.
Aluminum back bracket to be ordered separately part No. 35697P
A kit to reduce the stroke is available part No. 40735V
Special triangular brackets and magnetic locking device available for installation on SHEV

ULYSSES RWA is a special version with all external parts in aluminum suitable for installation on Smoke and Heat Exhaust Ventilators (SHEV) in conformity to standard EN 12101-2 and tested by Istituto Giordano.

Additional information

Manufacturer

Brand

Ultraflex Control Systems
Ultraflex Control Systems - UCS Products

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
  • Roof windows
  • Cupolas
Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

UCS ULYSSES RWA
Voltage Supply:

24 VDC +/-10%
Current Absorbtion (Max load):

1 A
Operation:

POLARITY INVERSION
Max Force:

650 N
Available stroke:

180 / 300 MM
Speed:

6 MM/S
Limit Stop:

ELECTRONIC
Safety Stop:

ELECTRONIC
Parallel Connection:

YES
PROTECTION CLASS:

IP65
Cable:

 1,5 M – 2 WIRES

Download PDF's

Ultraflex Control Systems UCS ULYSSES RWA data sheet

Ultraflex Control Systems UCS ULYSSES RWA instructions
