Ultraflex Control Systems Twin VEGA DC

Product Information

Description

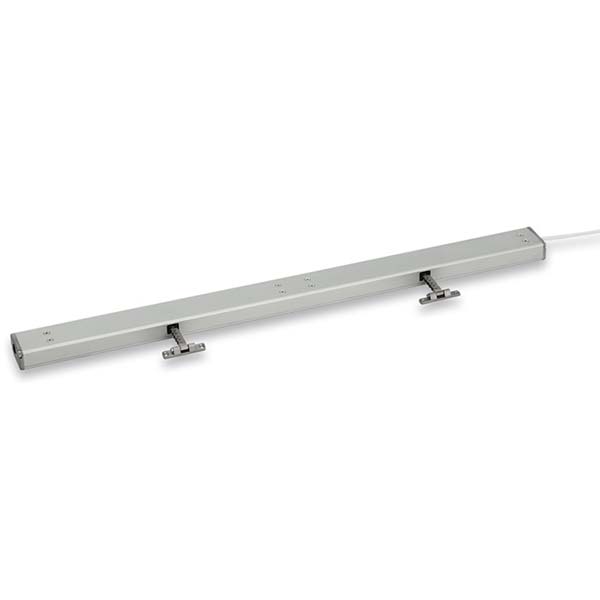

Ultraflex Control Systems Twin VEGA DC
MAIN FEATURES:
The strongest chain actuator: 600 N. Chains in double stainless steel links.
Equipped with an integrated speed synchronization control board.
Quick and easy installation: the manual closing position regulation is not required.
The stop in closing position is regulated by an electronic limit switch control.
Electronic stop in the intermediate positions in case of overload.

TWIN QUASAR AC is provided with 3 m cable (no synchronisation, feedback signal or speed selection).

OTHER VERSION UPON REQUEST:
RAL colour and chain lenght can be customised.

Additional information

Manufacturer	UCS

Brand

Ultraflex Control Systems

Product Applications

This product is suitable for:

Top-hung windows
Bottom-hung windows
Pivoting frame windows
Roof windows
Cupolas

Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

UCS Twin VEGA DC

Voltage Supply:

24 VDC +/-10%

Current Absorbtion (Max load):

1,4 A

Operation:

POLARITY INVERSION

Max Force:

600 N

Available stroke:

300 MM

Speed:

7 MM/S

Duty Cycle:

50%

Limit Stop:

ELECTRONIC

Safety Stop:

ELECTRONIC

Parallel Connection:

YES

PROTECTION CLASS:

IP30

Cable:

3 M – 2 WIRES

Ultraflex Control Systems UCS Twin VEGA DC
