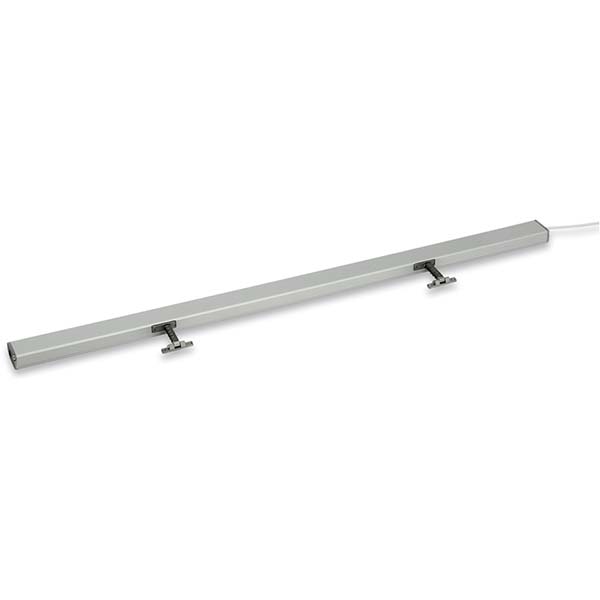

Ultraflex Control Systems Twin Quasar DC F-Signal
MAIN FEATURES:
The strongest chain actuator: 600 N. Chains in double stainless steel links.
Equipped with an integrated speed synchronization control board.
Quick and easy installation: the manual closing position regulation is not required.
The stop in closing position is regulated by an electronic limit switch control.
Electronic stop in the intermediate positions in case of overload.

TWIN QUASAR DC F-SIGNAL versions provide free potential opening and closing feedback signal (maintained contact), activated by the current limit. Suitable for combined installation with the additional locking device E-LOCK (see related data sheet under PDF downloads).

Additional information

Stroke (mm)

500

Max Force (N)

600

Supply Voltage

24Vdc

Max Current (amps)

1.80

Max Speed (mm/s)

15.00

Locking Force (N)

5000

Window Types

Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung

IP Rating

IP40

Manufacturer

Colour/Finish

Black (RAL 9005), Silver Anodised, White (RAL 9010)

Brand

Ultraflex Control Systems
Ultraflex Control Systems - UCS Products

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
  • Roof windows
  • Cupolas
Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

UCS Twin Quasar DC F-Signal
Voltage Supply:

24 VDC +/-10%
Current Absorbtion (Max load):

1,8 A
Operation:

POLARITY INVERSION
Max Force:

600 N
Available stroke:

500 MM
Speed:

15 MM/S
Duty Cycle:

50%
Limit Stop:

ELECTRONIC
Safety Stop:

ELECTRONIC
Parallel Connection:

YES
PROTECTION CLASS:

 IP40
Cable:

 3 M – 5 WIRES
Locking force:

 5000 N
Feedback:

 YES – FREE POTENTIAL
