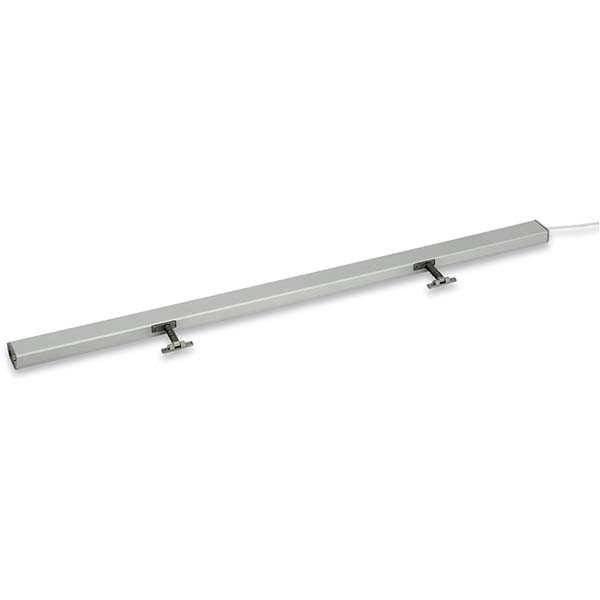

Ultraflex Control Systems Twin Quasar AC
MAIN FEATURES:
The strongest chain actuator: 600 N. Chains in double stainless steel links.
Equipped with an integrated speed synchronization control board.
Quick and easy installation: the manual closing position regulation is not required.
The stop in closing position is regulated by an electronic limit switch control.
Electronic stop in the intermediate positions in case of overload.
TWIN QUASAR AC is provided with 3 m cable (no synchronization, feedback signal and speed selection).
Additional information
| Stroke (mm) | 500 |
|---|---|
| Max Force (N) | 600 |
| Supply Voltage | 230Vac |
| Max Current (amps) | 0.40 |
| Max Speed (mm/s) | 15.00 |
| Locking Force (N) | 5000 |
| Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
| IP Rating | IP40 |
| Manufacturer | |
| Colour/Finish | Black (RAL 9005), Silver Anodised, White (RAL 9010) |
Brand
Ultraflex Control Systems
Product Applications
|
This product is suitable for:
 |
Technical Details
Model:
UCS Twin Quasar AC
Voltage Supply:
110v AC – 240v AC
Current Absorbtion (Max load):
0,9 A – 0,4 A
Operation:
THREE WIRES (OPEN, CLOSE, COM)
Max Force:
600 N
Available stroke:
500 MM
Speed:
15 MM/S
Duty Cycle:
50%
Limit Stop:
ELECTRONIC
Safety Stop:
ELECTRONIC
Parallel Connection:
YES
PROTECTION CLASS:
IP40
Cable:
3 M – 3 WIRES + EARTH
Locking force:
5000 N
