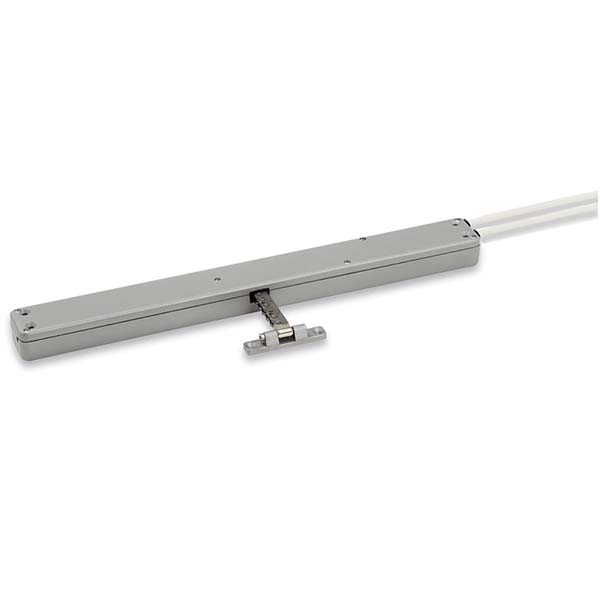

Ultraflex Control Systems Synchro VEGA DC

By: Joseph

Brand: Ultraflex Control Systems | Manufacturer Part numbers: 41122C, 41123D, 41124E

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Skylights, roof windows
  • Pivot frames
  • Cupolas
Specifications at a glance:

Traction force:  Programable up to 300 N
Thrust force:  Programable up to 300 N
Strokes:  Programable up to 300 mm
Protection Class:  IP 30
Voltage supply: 24v DC

Colours Available:

Available in black
Black
Available in white
White
Available in Silver Anodised
SAA


Bracket Options:
Get in touch for help picking the right brackets for your window.

NOT SURE IF THIS IS EXACTLY RIGHT?
Call 01702 826267 to order or for advice
CALL TO ORDER NOW
Next Day Delivery on 100s of Products
EXPERT ADVICE
Free for Trade & Public

Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

Description

MAIN FEATURES:
High performance in small die-cast aluminum casing (45 x 32 mm), powder painted.
Chain in double stainless steel links. Chain exit in central position.
Quick and easy installation: the manual closing position regulation is not required.
The stop in closing position is regulated by an electronic limit switch control.
Electronic stop in the intermediate positions in case of overload.

VEGA DC is provided with 1,5 m cable (no synchronization, feedback signal and speed selection). Suitable for combined installation with the additional locking device E-LOCK or PLUSULTRA (see related data sheet).

Buy Now

Free Live Product Support - help finding window opener products

Order Now by Phone

The range of manual and electric window openers is vast and choosing the right solution depends on your needs. Our website carries just a sample of the most popular products we sell, but by no means covers everything we stock or can supply. It is always best to call us and we will help you confirm if it is the correct product for your exact needs.

To Order Dial: 01702 826 267

Brand

Ultraflex Control Systems
Ultraflex Control Systems - UCS Products

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
  • Roof windows
  • Cupolas
Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

UCS Synchro VEGA DC

Voltage Supply:

24 VDC +/-10%

Current Absorbtion (Max load):

0,7 A

Operation:

POLARITY INVERSION

Max Force:

300 N

Available stroke:

300 MM

Speed:

7 MM/S

Duty Cycle:

50%

Limit Stop:

ELECTRONIC

Safety Stop:

ELECTRONIC

Parallel Connection:

YES

PROTECTION CLASS:

 IP30

Cable:

1,5 M – 2 WIRES

Synchro:

 YES

Download PDF's

Ultraflex Control Systems UCS Synchro VEGA DC data sheet

Ultraflex Control Systems UCS Synchro VEGA DC instructions
