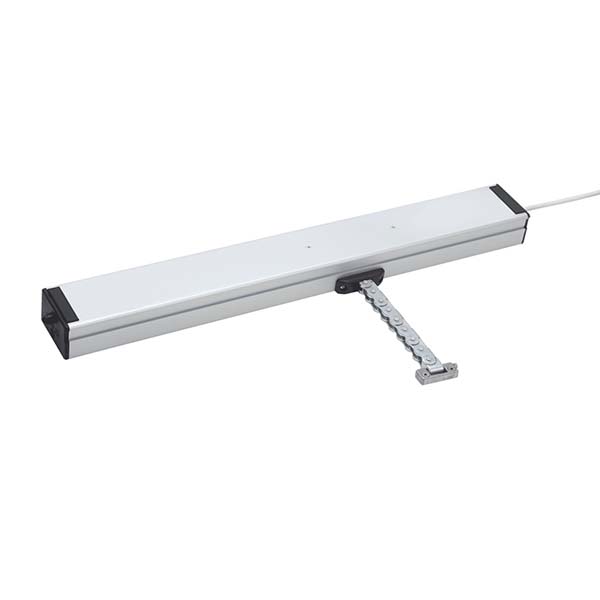

Ultraflex Control Systems SUPERMASTER 24 VDC

By: Joseph

Brand: Ultraflex Control Systems | Manufacturer Part numbers: 40506L, 40509T, 40507N, 40461R, 40467D, 40468F, 40469H, 40470S, 40471U

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Skylights, roof windows
  • Pivot frames
  • Cupolas
Specifications at a glance:

Traction force:  400 N
Thrust force:  400 N
Strokes:  450 / 600 / 800 MM
Protection Class:  IP 20
Voltage supply: 24V DC

Colours Available:

Available in brown
Brown
Available in white
White
Available in grey
Grey


Bracket Options:
Get in touch for help picking the right brackets for your window.

NOT SURE IF THIS IS EXACTLY RIGHT?
Call 01702 826267 to order or for advice
CALL TO ORDER NOW
Next Day Delivery on 100s of Products
EXPERT ADVICE
Free for Trade & Public

Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

Description

MAIN FEATURES:
The longest stroke (800 mm) and the highest force (400 N): it solves the problems to operate very heavy vents and the necessity of wide opening without taking up space inside the room (800 mm only for bottom hinged windows).
Double link chain. Red led light placed on the actuator to signal the close position.

Minimum window height: 900 mm for 450 mm stroke, 1200 mm for 600 mm stroke, 1600 mm for 800 mm stroke.
For windows without windowsill a fixing bracket (sliding within the dovetail slide) is available for an easy installation.
Supplied with 2 m cable (450-600 mm), 3 m cable (800 mm).

Buy Now

Free Live Product Support - help finding window opener products

Order Now by Phone

The range of manual and electric window openers is vast and choosing the right solution depends on your needs. Our website carries just a sample of the most popular products we sell, but by no means covers everything we stock or can supply. It is always best to call us and we will help you confirm if it is the correct product for your exact needs.

To Order Dial: 01702 826 267

Brand

Ultraflex Control Systems
Ultraflex Control Systems - UCS Products

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
  • Roof windows
  • Cupolas
Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

UCS Supermaster 24 VDC

Voltage Supply:

24 VDC +/-10%

Current Absorption (Max load):

2 A

Operation:

BY POLARITY INVERSION

Max Force:

400 N

Available Stroke:

450 / 600 / 800 MM

Speed:

20 MM/S

Limit Stop:

MICRO SWITCHES

Protection:

ELECTRONIC

Parallel Connection:

 Yes

PROTECTION CLASS:

 IP20

Feedback:

 OPEN / CLOSE

Download PDF's

Ultraflex Control Systems UCS Supermaster 24 VDC data sheet

Ultraflex Control Systems UCS Supermaster 24 VDC Manual
