Ultraflex Control Systems UCS SUPERMASTER 230 VAC

Call us for latest pricing

Brand: Ultraflex Control Systems | Manufacturer Part numbers: 40462T, 40465Z, 40466B, 40452P, 40464X, 40454U, 40518U, 40753T, 40774O

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Skylights, roof windows
  • Pivot frames
  • Cupolas
Specifications at a glance:

Traction force: 400 N

Thrust force: 400 N

Strokes: 450 / 600 / 800 MM

Protection Class: IP 20

Voltage supply: 230V AC

Colours Available:

Available in brown

Brown

Available in white

White

Available in grey

Grey

Product Information

Description

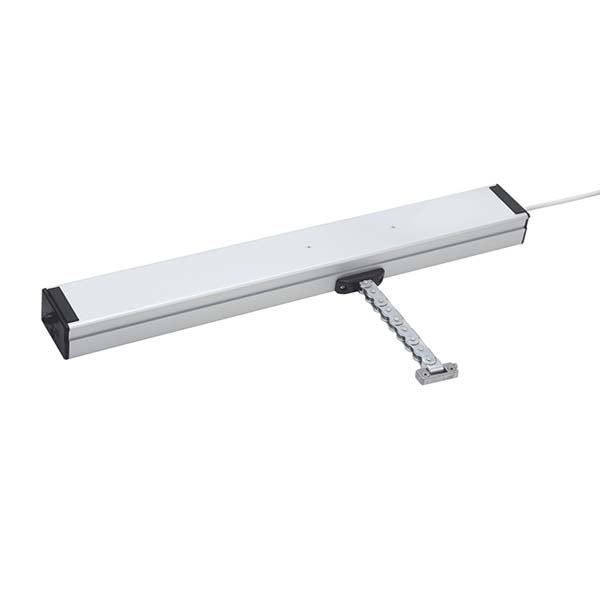

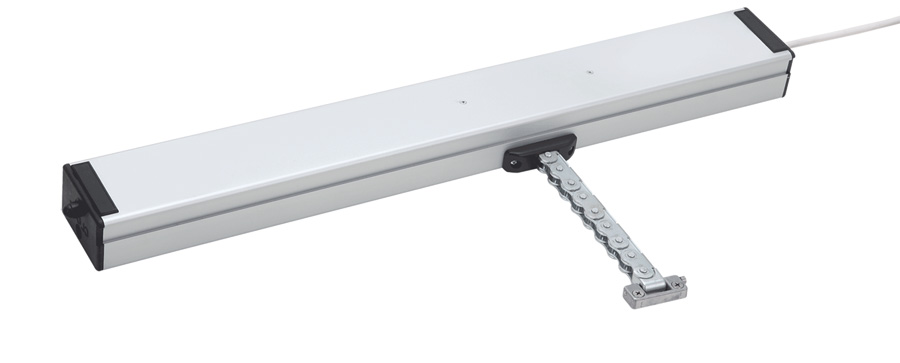

Ultraflex Control Systems SUPERMASTER 230 VAC
MAIN FEATURES:
The longest stroke (800 mm) and the highest force (400 N): it solves the problems to operate very heavy vents and the necessity of wide opening without taking up space inside the room (800 mm only for bottom hinged windows).
Double link chain. Red led light placed on the actuator to signal the close position.

Minimum window height: 900 mm for 450 mm stroke, 1200 mm for 600 mm stroke, 1600 mm for 800 mm stroke.  Pivot brackets are available and can provide a bigger opening distance, please get in touch for specific advice.
For windows without windowsill a fixing bracket (sliding within the dovetail slide) is available for an easy installation.
Supplied with 2 m cable (450-600 mm), 3 m cable (800 mm).

For installation of two SUPERMASTER AC on the same vent it is available the Coupling Control unit CP230.

Additional information

Manufacturer

Brand

Ultraflex Control Systems
Ultraflex Control Systems - UCS Products

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
  • Roof windows
  • Cupolas
Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

UCS Supermaster 230 VAC
Voltage Supply:

230V AC +/-10%
Current Absorption (Max load):

0,8 A
Operation:

THREE WIRES (OPEN/CLOSE/COM)
Max Force:

400 N
Available Stroke:

450 / 600 / 800 MM
Speed:

23 MM/S
Limit Stop:

MICRO SWITCHES
Protection:

THERMIC
Parallel Connection:

 Yes
PROTECTION CLASS:

 IP20

Download PDF's

Ultraflex Control Systems UCS Supermaster 230 VAC data sheet

Ultraflex Control Systems UCS Supermaster 230 VAC Manual
