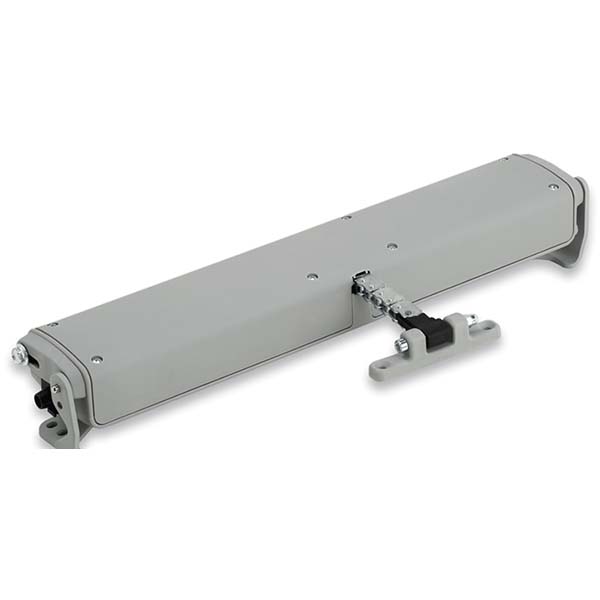

Ultraflex Control Systems STILE R
MAIN FEATURES:
Double link chain for a better load resistance in case of top hinged windows, heavy windows or roof windows.
Glass strengthened nylon casing. Double electric insultation actuator (no electric connection to earth is needed).
The special removable plug allows a very quick and easy connection. It is deal for the final test of the actuators on the building site.
Provided with closing feedback signal.

STILE R with a maximum stroke of 400 mm, adjustable from 0 to 300 mm, by positioning a magnet on the chain during installation.

Additional information

Stroke (mm)

0 – 300, Selectable, 400

Max Force (N)

300

Supply Voltage

230Vac

Max Current (amps)

0.80

Max Speed (mm/s)

30.00

Locking Force (N)

800

Window Types

Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung

IP Rating

IP20

Manufacturer

Colour/Finish

Black, Grey, White

Brand

Ultraflex Control Systems
Ultraflex Control Systems - UCS Products

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
  • Roof windows
  • Cupolas
Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

UCS STILE R
Voltage Supply:

230V AC 50/80 HZ
Current Absorption (Max load):

0,8 A
Operation:

THREE WIRES (OPEN/CLOSE/COM)
Max Force:

300 N
Speed:

30 MM/S
Limit Stop:

MICRO SWITCHES
Protection:

THERMIC
Parallel Connection:

YES
PROTECTION CLASS:

 IP20
Available Stroke:

 ADJUSTABLE FROM 0 TO 300 MM
