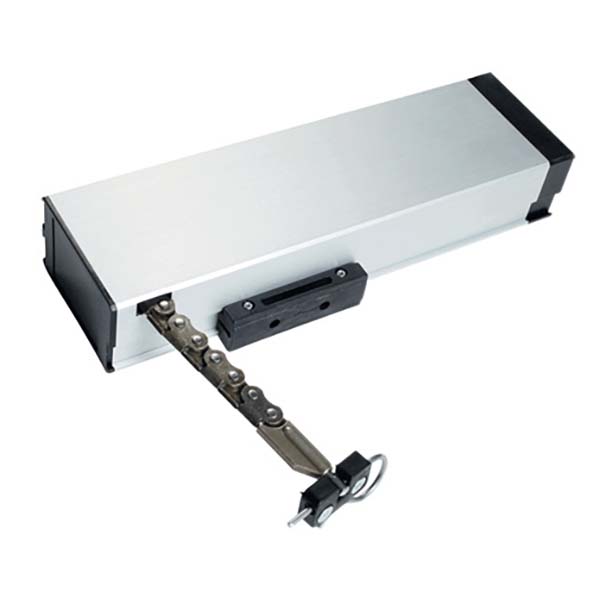

Ultraflex Control Systems UCS SINTESI 2000

Call us for latest pricing

Brand: Ultraflex Control Systems | Manufacturer Part numbers: 40313C, 40314D, 40316F

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Skylights, roof windows
  • Pivot frames
  • Cupolas
Specifications at a glance:

Traction force: 180 N

Thrust force: 180 N

Strokes: 250 / 380 MM

Protection Class: IP 20

Voltage supply: 230V AC

Colours Available:

Available in black

Black

Available in white

White

Available in Silver Anodised

SAA

Product Information

Description

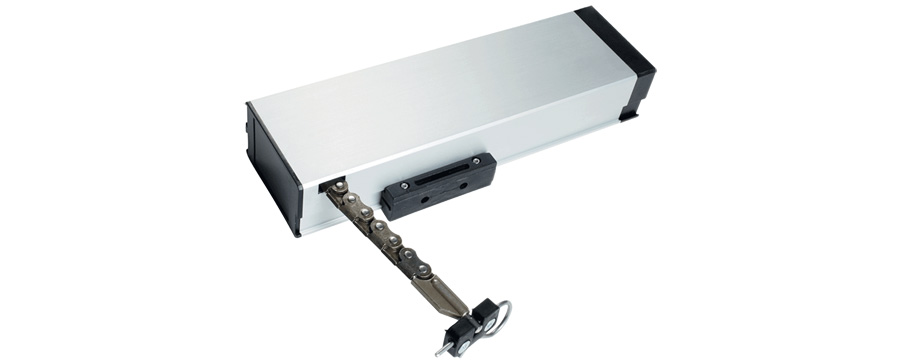

Ultraflex Control Systems SINTESI 2000
MAIN FEATURES:
Possibility of selecting two different strokes: 250 mm or 380 mm.
Three dovetail slides for an easy installation; the sliding fixing bracket is included in the package.

SINTESI 2000: exclusive system for electircal connection.
The special removable plug allows a very quick and easy connection.
It is deal for the final test of the actuators on the building site.

Additional information

Manufacturer

Brand

Ultraflex Control Systems
Ultraflex Control Systems - UCS Products

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
  • Roof windows
  • Cupolas
Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

UCS SINTESI 2000
Voltage Supply:

230V AC +/-10%
Current Absorption (Max load):

0,65 A
Operation:

THREE WIRES (OPEN/CLOSE/COM)
Max Force:

180 N
Speed:

40 MM/S
Limit Stop:

MICRO SWITCHES
Protection:

THERMIC
Parallel Connection:

YES
PROTECTION CLASS:

 IP20
Available Stroke:

 250 / 380 MM

Download PDF's

Ultraflex Control Systems UCS SINTESI 2000 data sheet

Ultraflex Control Systems UCS SINTESI 2000 Manual
