Product Information

Description

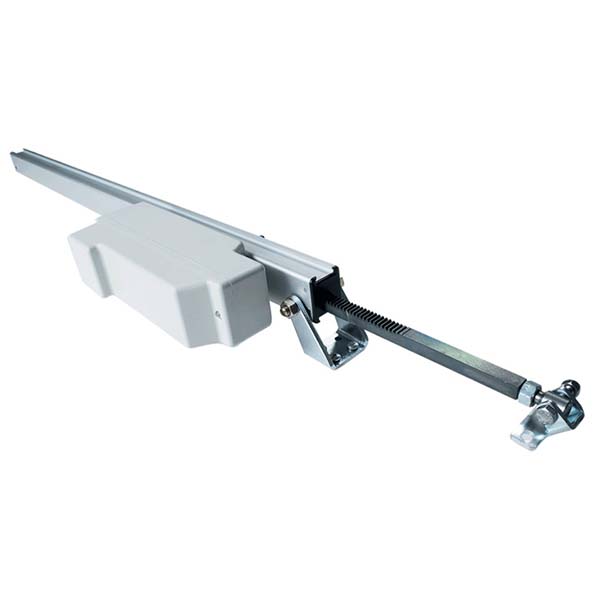

Ultraflex Control Systems RACK 24 VDC
MAIN FEATURES:
10 mm square rack transmission for stroke 180mm, 350mm, 550mm and 12 mm square rack transmission for stroke 750mm, 1000mm.
Supplied with 1,5 m cable.
Available end brackets or sliding brackets (to be ordered separately); the dovetail slide allows the fixing on the whole length of the Rack actuator. Not for multiple systems.

MULTIPLE SYSTEMS:
For large domes/top hinged windows or to provide more stability, the Rack actuator can be used either in the Dual Rack or in the Double Rack version, providing two or more push points on the same vent. Double Rack provides the double of the force.
Dual Rack: push force 650 N (230 Vac) – 750 N (24 Vdc). For each system assembly are necessary 1x Rack actuator, 1x Rack group, 1x connecting rod and 2x end brackets (part No. 40234E)
Double Rack: push force 1300 N (230 Vac) – 1500 N (24 Vdc). For each system assembly are necessary 1x Rack actuator, 1x Auxiliary Rack actuator in parallel connection, 1x connecting rod and 2 end brackets (part No. 40234E)

It is also available a Rack Group Double Pivot for system assembly providing 3 or more push points.

Additional information

Manufacturer

Brand

Ultraflex Control Systems
Ultraflex Control Systems - UCS Products

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
  • Roof windows
  • Cupolas
Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

UCS RACK 24 VDC
Voltage Supply:

24 VDC +/-10%
Current Absorbtion (Max load):

1 A
Operation:

POLARITY INVERSION
Max Force:

750 N
Available stroke:

180 / 350 / 500 / 750 / 1000 MM
Speed:

8 MM/S
Limit Stop:

ELECTRONIC
Safety Stop:

ELECTRONIC
Parallel Connection:

YES
PROTECTION CLASS:

IP55
Cable:

 1,5 M – 2 WIRES + SIGNALING
DUTY CYCLE:

50%

Download PDF's

Ultraflex Control Systems UCS RACK 24 VDC data sheet

Ultraflex Control Systems RACK 24 VDC instructions
