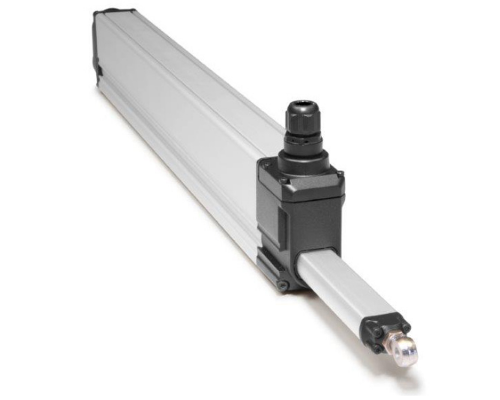

Topp S80 RWA Linear stem actuator

Call us for latest pricing

Brand: Topp | Manufacturer Part number: S80 RWA

This product is suitable for:

  • Top-hung windows
  • louvered windows
  • Cupolas
Specifications at a glance:

Max applicable load in thrust: 800 N

Max applicable load in traction: 800 N

Strokes (selectable at any time): 200 – 400

Idle translation speed: 6,5 mms

Protection Class: IP 65

Voltage supply: 24v DC

Colours Available:

Available in Silver
Silver

Topp S80 RWA Linear stem actuator
Linear electric actuator Topp model S80 with self-aligning tilting movement, complete with support and fitting accessory for top hung windows or sun blades and louvers. Operation at 24V DC. Max. traction and thrust force 800N.

Preset for the synchronous operation of two actuators on the same window. Available strokes: 200 – 400 mm. IP65 protection degree.
CE marked device, tested in accordance with the EN12101-2 Standard for smoke ventilation applications.

Brand

Topp

Topp

Product Applications

This product is suitable for:

  • Top-hung windows
  • Louvered windows
  • Cupolas

Technical Details

Model:

S80 RWA
Power voltage:

24V
Max applicable load in thrust:

800 N
Max applicable load in traction:

800 N
Strokes:

200 – 400
Absorbed current:

1 A
Idle translation speed:

0,1 A
Idle translation speed:

6,5 mms
Duration of the idle stroke:
calculate as stroke divided by no-load speed
Double electrical insulation:

yes
Service type:

S2 di 3 min
Operating temperature:

-20°C + 60°C
Protection Class:

IP65
Parallel connection option:

yes
Stroke end:

mechanical / electronic
Synchronous operation of more actuators on the same window:

yes

Download PDF's

TOPP Linear actuator S80 RWA instructions

TOPP Linear actuator S80 RWA pdf details
