Home»Electric Actuators»Chain»Mingardi Micro L Chain – 380mm

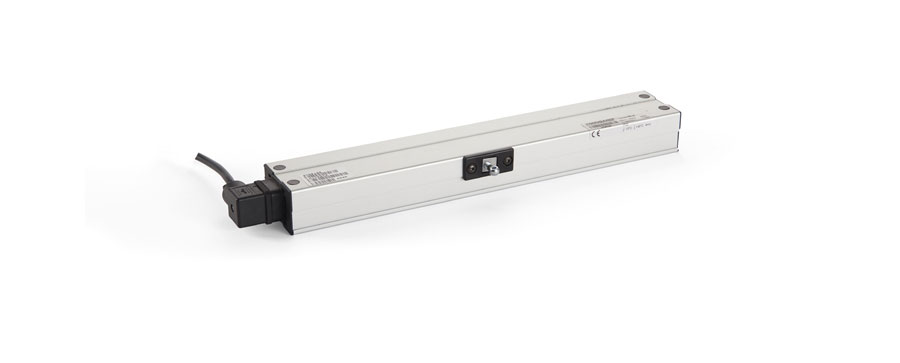

Mingardi Micro L Chain – 380mm

Call us for latest pricing

Brand: Mingardi | Manufacturer Part numbers: 2700121, 2700534, 2700335, 2700123, 2700544, 2700338

This product is suitable for:

  • Top hung windows
  • bottom hung windows
Specifications at a glance:

Thrust & Traction force: 350 N

Max Strokes: 380 mm

Voltage supply: 24 V / 230 Vca

Protection Class: IP 22

Colours Available:

Available in Black


Available in White


Available in Silver



Mingardi Micro L Chain – 380mm
MINGARDI linear electric actuator with reinforced double-sprocket chain inside the actuator body. Operating voltage: 230V AC 50Hz or 24V DC. In compliance with the relevant European Directives. Tested in accordance with the requirements of the European Standard EN 12101 – 2. Outfitted with electronic limit switch system for opening and closing, which can be connected in parallel.

Colours available: anodised silver (A) – anodised black (N) – RAL 9003 (B).

Additional information




Product Applications

This product is suitable for:

  • Top hung windows
  • bottom hung windows

Technical Details

Mingardi Micro L Chain – 380mm Version
Power Supply:
24 V
 230 V
Absorbed Power:
25 W
110 W
Min Speed:
ca. 16 mm/s
ca. 15 mm/s
Thrust Force:
350 N
350 N
380 mm
380 mm


Download PDF's

Mingardi Micro L Instructions

Mingardi Micro L Motor
