Mingardi Micro KIT

► Click to Enquire, or call us on 01702 826 267 to order

If you prefer to speak to us by phone during office hours please call: 01702 826 267

Brand: Mingardi | Manufacturer Part numbers:  2700810, 2700811, 2700812

This product is suitable for:

  • Top hung windows
  • bottom hung windows
Specifications at a glance:

Thrust & Traction force: 250 N
Max Strokes: 400 mm
Voltage supply: 24 V / 230 Vca
Protection Class: IP 20

Colours Available:

Available in Black
Black
Available in White
White
Available in Silver
Silver


Bracket Options:
Options listed in Download Pdf below.
Get in touch for help picking the right brackets for your window.

NOT SURE IF THIS IS EXACTLY RIGHT?
Call 01702 826267 to order or for advice
CALL TO ORDER NOW
Next Day Delivery on 100s of Products
EXPERT ADVICE
Free for Trade & Public

Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

Category: Tag:

Description

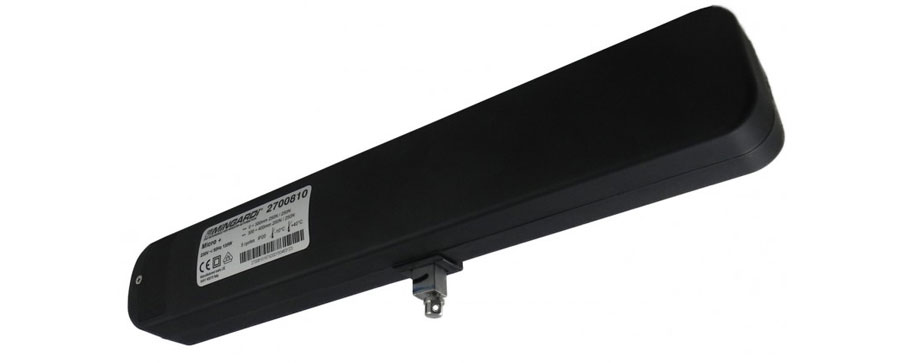

Mingardi Micro KIT
MINGARDI electric linear actuator with articulated chain movement contained inside the enclosure. Operating voltage: 230V AC 50Hz. In compliance with the relevant European Directives. Outfitted with electronic limit switch system for opening and closing. Stroke can be selected using magnet. Can be connected in parallel.

Brand

Mingardi

Product Applications

This product is suitable for:

  • Top hung windows
  • bottom hung windows

Technical Details

Model:

Mingardi Micro KIT

Power Supply:

 230 V

Absorbed Power:

135 W

Min Speed:
ca. 20 mm/s

Thrust Force:

max 250 N

Stroke:

max 400 mm



Download PDF's

Mingardi Micro KIT Instructions

Mingardi Micro KIT Motor
