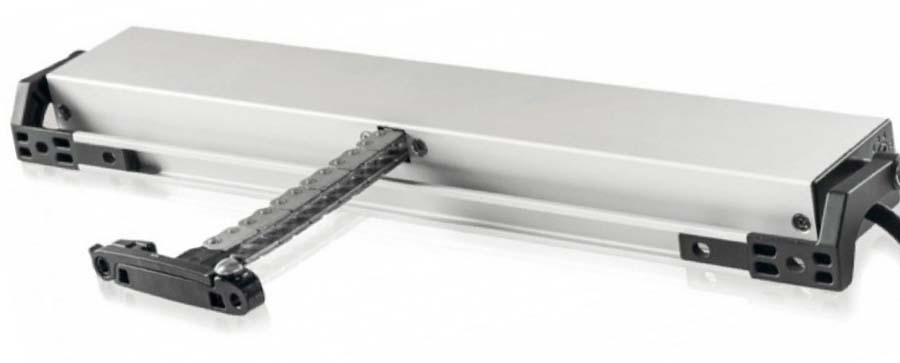

Mingardi Micro Evo 1

► Click to Enquire, or call us on 01702 826 267 to order

If you prefer to speak to us by phone during office hours please call: 01702 826 267

Brand: Mingardi | Manufacturer Part numbers: 2701006,

This product is suitable for:

  • Dome & Skylight windows
  • Top & bottom hung windows
  • Pivoting windows
Specifications at a glance:

Thrust & Traction force: 300 N
Max Strokes: 100/200/300/400 mm
Voltage supply: 230 Vca – 50 Hz
Protection Class: IP 32

Colours Available:

Available in Black
Black
Available in White
White
Available in Silver
Silver


Bracket Options:
Options listed in Download Pdf below.
Get in touch for help picking the right brackets for your window.

NOT SURE IF THIS IS EXACTLY RIGHT?
Call 01702 826267 to order or for advice
CALL TO ORDER NOW
Next Day Delivery on 100s of Products
EXPERT ADVICE
Free for Trade & Public

Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

Category: Tag:

Description

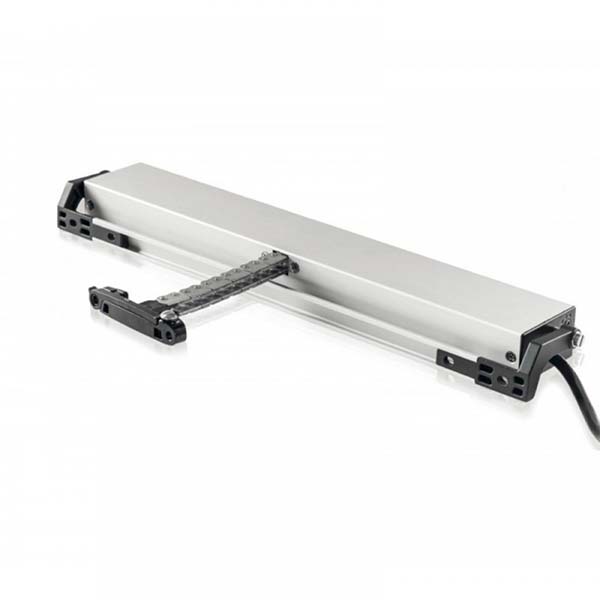

Mingardi Micro Evo 1
MINGARDI electrical linear actuator with double-link chain inside the metallic casing. Equipped with overload protection and automatic end limit setting. Equipped with 4 electronically selectable strokes. Equipped with a synchronization system that coordinates the chain movement of multiple actuators (up to 4) without using any external control unit. Available operating voltages: 110-240 V, 50/60 Hz AC or 24 V DC.

Suitable for parallel wiring. In compliance with the relevant European Directives. Available versions: anodized silver or painted black RAL 9005 casing with black accessories and cable; White RAL 9003 casing version available with white accessories and cable.

Mingardi Micro Evo 1 comes complete with accessories for installation on top hinged or bottom hinged windows.

Brand

Mingardi

Product Applications

This product is suitable for:

  • Dome & Skylight windows
  • Top & bottom hung windows
  • Pivoting windows

Technical Details

Model:

Mingardi Micro Eco 1

Power Supply:
24 V
 110 – 240 V

Absorbed Power:
24 W
25 W

Min Speed:
13 mm/s
13 mm/s

Thrust Force:
300 N
300 N

Stroke:
100-200-300-400 mm
100-200-300-400 mm



Download PDF's

Mingardi Micro Evo 1 Instructions

Mingardi Micro Evo 1 Motor
