Mingardi Micro 02

Call us for latest pricing

Brand: Mingardi | Manufacturer Part numbers: 2700462, 2700469, 2700463, 2700471, 2700477, 2700472

This product is suitable for:

  • Top hung windows
  • bottom hung windows
Specifications at a glance:

Thrust & Traction force: 150 / 300 N

Max Strokes: 250 / 365 mm

Voltage supply: 24 V / 230 Vca

Protection Class: IP 20

Colours Available:

Available in Black

Black

Available in Silver

Silver

Description

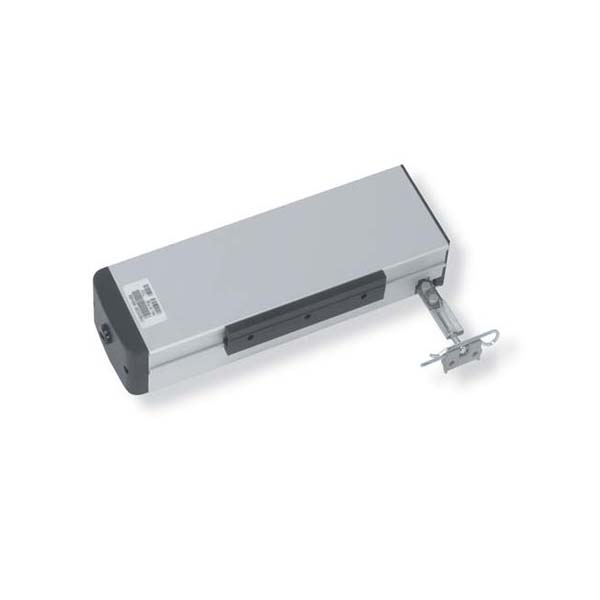

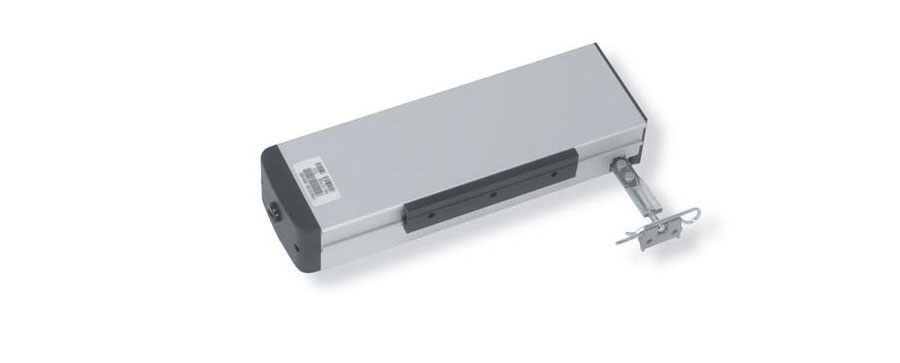

Mingardi Micro 02
MINGARDI linear electric actuator with sproket chain inside the actuator body. Operating voltage: 230V AC 50Hz or 24V DC. In compliance with the relevant European Directives. Outfitted with end-ofstroke microswitch in closed position / reed contact in open position system. Selectable stroke by means of external selector. Can be connected in parallel with signal outputs.

Mingardi Micro 02 Available colours: anodised silver (A) – anodised black (N) – RAL 9003 (B). Complete with accessories for top-hinged windows.

Additional information

Manufacturer

Brand

Mingardi

Product Applications

This product is suitable for:

  • Top hung windows
  • bottom hung windows

Technical Details

Model:

Mingardi Micro 02
Power Supply:
24 V
 230 V
Absorbed Power:
55 W
130 W
Min Speed:
ca. 40 mm/s
ca. 35 mm/s
Thrust Force:
150 / 300 N
150 / 300 N
Stroke:
250 / 365 mm
250 / 365 mm



Download PDF's

Mingardi Micro 02 Instructions

Mingardi Micro 02 Motor
