Product Information
Description

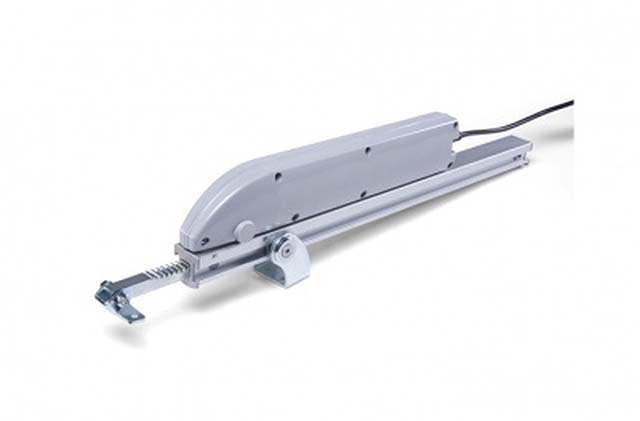

Mingardi Drive Evo 2 – 350mm
Electrical linear actuator for the automation of top hinged window, pivot window, skylights, domes and sunshade systems.
Drive Evo 2 350mm version offers maximun flexibility thanks to its different configurations and voltages.
Suitable for wide window frames with tandem application
Strokes up to 350 mm
Extended voltage range 110 – 240V AC (50/60 Hz)
Aluminium gearmotor body
Double electrical insulation: Class II version 110 – 240V AC (50/60Hz)
Protection degree: IP 55 electrical parts
Soft stop closing to preserve the window frame
Steel rack
Fixing pivoting bracket sliding along the whole rack body
Additional information
| Manufacturer |
|---|
Brand
Mingardi
Product Applications
|
This product is suitable for:
|
Technical Details
Model:
Mingardi Drive EVO 2 – 350mm
Power Supply:
110 – 240 V
Absorbed Power:
35 W
Min Speed:
ca. 7 mm/s
Thrust Force:
1000 N
Stroke:
350 mm
Mingardi Drive EVO 2 Instructions
