D+H ZA-1500-1-PLP

By: Joseph

Brand: D+H | Manufacturer Part numbers:  ZA-1-PLP

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion
Specifications at a glance:

Power Supply: 24 V DC / ±15 % / 1.4 A
Force: 1000 N
Stroke: 100 – 1500 mm
Nominal locking force: 1100 N
Protection Class: IP65

Colours Available:

Available in White

Bracket Options:
Options listed in Download Pdf below.
Get in touch for help picking the right brackets for your window.

Call 01702 826267 to order or for advice
Next Day Delivery on 100s of Products
Free for Trade & Public

Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

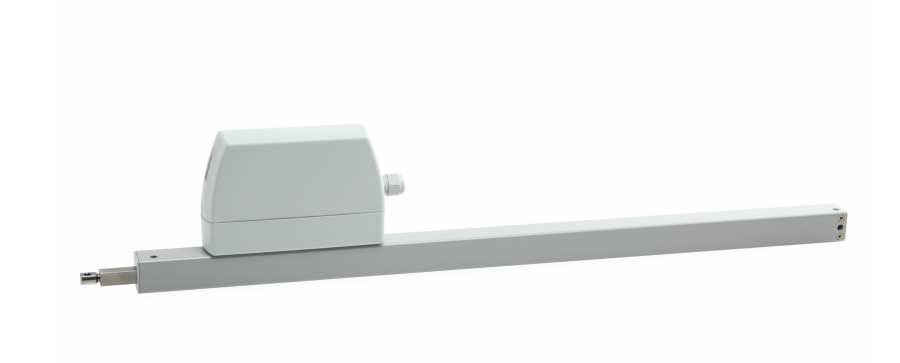

D+H ZA-1500-1-PLP
The strongest drive in D+H’s ZA Series: The ZA-1500-1-PLP even opens the heaviest window sashes using a force of pressure of 1500 N. Despite its impressive power, the drive is sensitive enough to identify obstacles while closing and to start opening again automatically thanks to the closing edge protection.

Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
With motor electronics controlled via microprocessor
Low current consumption thanks to high efficiency
Option of cable infeed above and below
Drive unit can be changed from left to right
D+H ZA-1500-1-PLP Programmable drive functions and different drive parameters
Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection)
Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)

Buy Now

Free Live Product Support - help finding window opener products

Order Now by Phone

The range of manual and electric window openers is vast and choosing the right solution depends on your needs. Our website carries just a sample of the most popular products we sell, but by no means covers everything we stock or can supply. It is always best to call us and we will help you confirm if it is the correct product for your exact needs.

To Order Dial: 01702 826 267


Product Applications

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion

Technical Details


Power Supply:
24 V DC / ±15 % / 1.4 A

Force of pressure:
1500 N

Tensile force:
1000 N

Nominal locking force:
1100 N

100 – 1500 mm

OPEN running speed:
7.1 mm/s

OPEN running speed – SHEV:
8 mm/s

CLOSED running speed:
7.1 mm/s

IP 65

Temperature range:
-5 °C … +75 °C

Emission sound pressure level:
LpA ≤ 51 dB(A)

Fire Resistance:
B300 (30 min / 300 °C)

2.5m silicone cable

W x H x D:
A: 225 – 1662 mm

Download PDF's

ZA-1000-1-PLP Instructions
