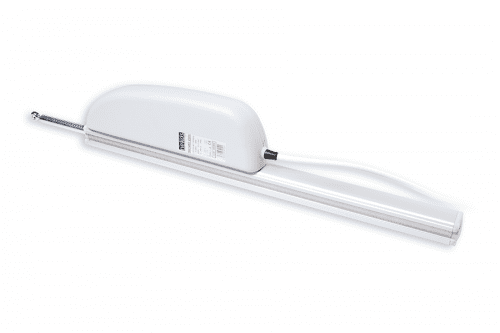

D+H ZA 105-K 500 mm

By: Joseph

Brand: D+H | Manufacturer Part numbers:  ZA 105/500-K

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion
Specifications at a glance:

Power Supply: 230 V AC / +10 % … -15 % / 50 Hz
Force: 1000 N
Stroke: 500 mm
Nominal locking force: Max. 1400 N (1100 N ***)
Protection Class: IP65

Colours Available:

Available in White
White


Bracket Options:
Options listed in Download Pdf below.
Get in touch for help picking the right brackets for your window.

NOT SURE IF THIS IS EXACTLY RIGHT?
Call 01702 826267 to order or for advice
CALL TO ORDER NOW
Next Day Delivery on 100s of Products
EXPERT ADVICE
Free for Trade & Public

Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

Description

D+H ZA 105-K 500 mm
The ZA 105-K provides a boost in performance and durability. This rack and pinion drive applies 1000 N of force of pressure and tensile force, which can be controlled directly using 230 V of voltage. This means a significantly smaller cable cross-section is sufficient and makes installation a breeze.

Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
Direct control via 230 V AC
Low current consumption thanks to high efficiency
Option of cable infeed above and below
Drive unit can be changed from left to right
D+H ZA 105-K 500 mm Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection)
Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)
