D+H ZA-0800-1-ACB 600mm

Call us for latest pricing

Brand: D+H | Manufacturer Part numbers: ZA-0800-0600-1-ACB M1-R, ZA-0800-0600-1-ACB M2-R,

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion
Specifications at a glance:

Power Supply: 24 V DC / 15 % / 1 A

Force: 800 N

Stroke: 100 – 600 mm

Nominal locking force: 1100 N

Protection Class: IP65

Colours Available:

Available in White

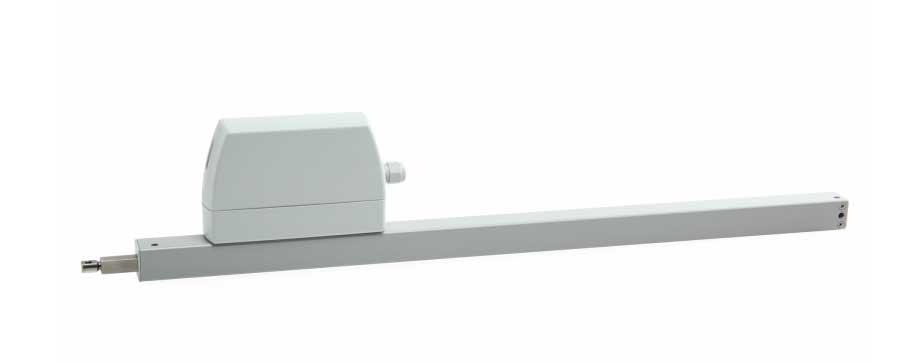

D+H ZA-0800-1-ACB 600mm
Reliable roof expert with ACB technology: The D+H ZA-0800-1-ACB rack and pinion drive opens and closes heavy windows and skylights with ease. By means of the integrated bus system, all status messages, such as the exact opening stroke, OPEN and CLOSED status, etc. can be read out.

Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
With integrated BSY+ motor and synchronised electronics controlled via microprocessor
Option of up to 8 drives in one synchronous group
Option of cable infeed above and below
Drive unit can be changed from left to right
Programmable drive functions and different drive parameters
Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection)
Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)
Integrated ACB (Advanced Communication Bus) bus interface with Modbus protocol
The drive is integrated directly via open bus communication through the ACB (Advanced Communication Bus), e.g. in a building management system

Additional information



Product Applications

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion

Technical Details

ZA-0800-1-ACB 600mm
Power Supply:
24 V DC / ±15 % / 1 A
Force of pressure:
800 N
Tensile force:
800 N
Nominal locking force:
1100 N
100 – 600 mm
OPEN running speed:
7 mm/s
OPEN running speed – SHEV:
7 mm/s
CLOSED running speed:
7 mm/s
IP 65
Temperature range:
-5 °C … +75 °C
Emission sound pressure level:
LpA ≤ 51 dB(A)
Fire Resistance:
B300 (30 min / 300 °C)
2.5m silicone cable
A: 762 mm

Download PDF's

ZA-0800-1-ACB 600mm Instructions
