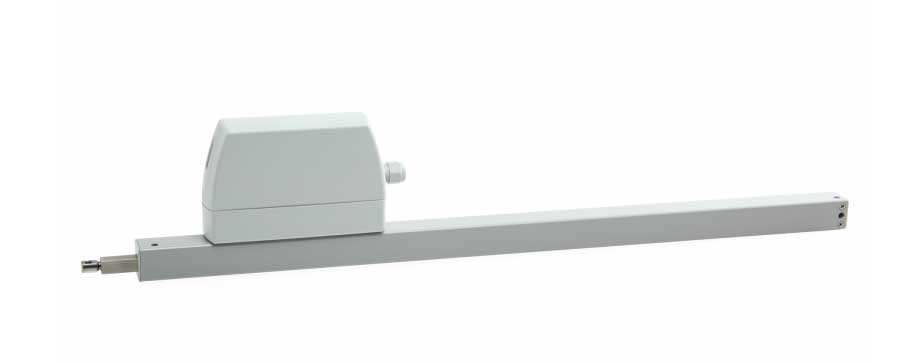

D+H ZA-0300-1-ACB

Description

D+H ZA-0300-1-ACB
Optimal for smaller loads: Despite its low current consumption, the D+H ZA-0300-1-ACB delivers a respectable 300 N and features ACB technology with all the advantages of this bus technology – compact and efficient.

Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
With integrated BSY+ motor and synchronised electronics controlled via microprocessor
Option of up to 8 drives in one synchronous group
Option of cable infeed above and below
Drive unit can be changed from left to right
Programmable drive functions and different drive parameters
Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection)
Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)
Integrated ACB (Advanced Communication Bus) bus interface with Modbus protocol
The drive is integrated directly via open bus communication through the ACB (Advanced Communication Bus), e.g. in a building management system
