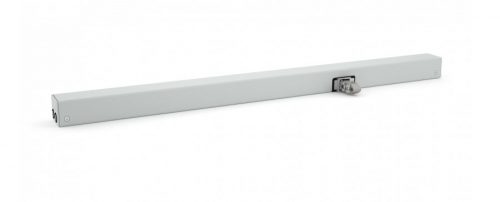

D + H VLD 51

By: Joseph

Brand: D+H | Manufacturer Part numbers:  VLD 51/038, VLD

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion
Specifications at a glance:

Power Supply: 24 V DC / ±20 % / 1 A
Force: 500 N
Stroke: 18 – 38 mm
Protection Class: IP50

Colours Available:

Available in White
White


Bracket Options:
Options listed in Download Pdf below.
Get in touch for help picking the right brackets for your window.

NOT SURE IF THIS IS EXACTLY RIGHT?
Call 01702 826267 to order or for advice
CALL TO ORDER NOW
Next Day Delivery on 100s of Products
EXPERT ADVICE
Free for Trade & Public

Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

Description

Compared to the FRA 11-BSY+, this window locking drive is not located on the sash. Instead, it can be integrated into the window profile so that it is no longer visible from the outside. Manual unlocking in emergency situations is possible at any time.

Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
For operating standard latch pane fittings
Connection of D+H window drives with BRV message
Window drives with a total current up to 2.5 A can be connected
Manual emergency unlocking possible
Configurable locking direction on the drive
Increased burglary protection

Buy Now

Free Live Product Support - help finding window opener products

Order Now by Phone

The range of manual and electric window openers is vast and choosing the right solution depends on your needs. Our website carries just a sample of the most popular products we sell, but by no means covers everything we stock or can supply. It is always best to call us and we will help you confirm if it is the correct product for your exact needs.

To Order Dial: 01702 826 267

Brand

Product Applications

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion

Technical Details

Model:

VLD 51

Power Supply:

24 V DC / ±20 % / 1 A

Locking force:

500 N

Breakaway force:

1000 N

Stroke:

18 – 38 mm

OPEN running speed:

4.2 mm/s

CLOSED running speed:

4.2 mm/s

Protection:

IP 50

Emission sound pressure level:

LpA ≤ 70 dB(A)

Temperature range:

-15 °C (-5 °C **) … +75 °C

Fire resistance:

B300 (30 min / 300 °C)

Housing:

V2A stainless steel

Connection:

2.5 m silicone cable

W x H x D:

493 x 25 x 25 mm

Download PDF's

VLD 51 Instructions
