Product Information
Description

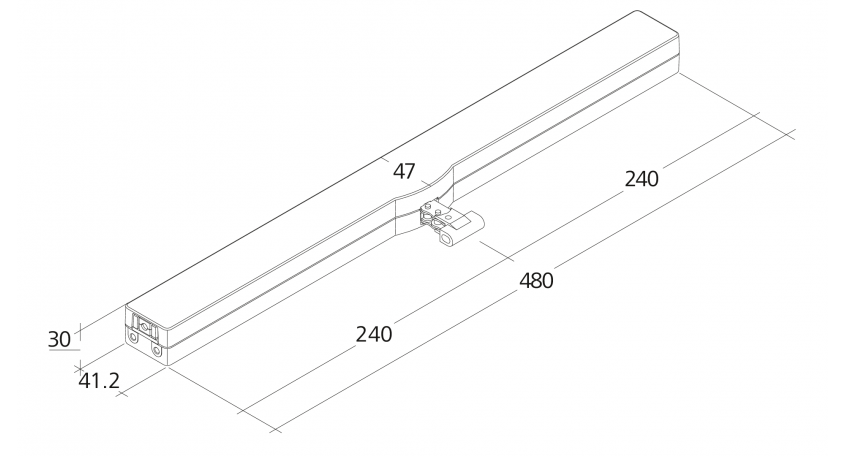

D+H VCD 204
VCD 203’s big brother: D+H VCD 204 chain drive ensures fresh air every day with windows that open up to 350 mm. The aesthetic solution for reliably opening and closing façade and roof windows.
For façade windows, roof windows and ventilation flaps in conservatories
With motor electronics controlled via microprocessor

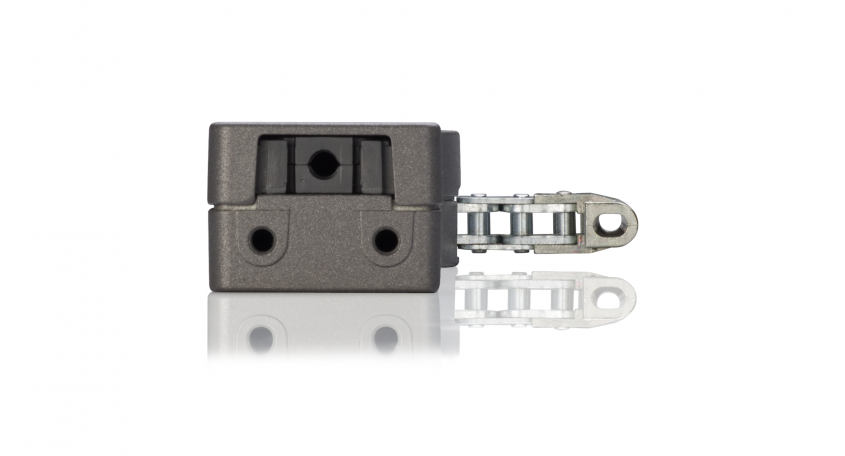

Special chain stabilisation and centred chain outlet
“TMS+” tandem safety function for operating 2 drives on one sash
Option of chain stroke programming via magnet
Reprogrammed opening stroke is transmitted to the tandem drive
Simple connection via plug connector
Programmable drive functions and different drive parameters
Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection)
Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)
Additional information
| Stroke (mm) | Selectable, 250 |
|---|---|
| Max Force (N) | 200 |
| Supply Voltage | 24Vdc |
| Max Current (amps) | 0.35 |
| Max Speed (mm/s) | 6.00 |
| Locking Force (N) | 2000 |
| Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
| IP Rating | IP30 |
| Manufacturer | |
| Colour/Finish | Black (RAL 9005), Silver (RAL 9006), White (RAL 9016) |
Brand
Product Applications
|
This product is suitable for:
|
VCD 204/250 Instructions
