D+H VCD-0204-5-ACB

Call us for latest pricing

Brand: D+H | Manufacturer Part numbers: VCD-0204-0250-5-ACB M1-M, VCD-0204-0350-5-ACB M1-M

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion
Specifications at a glance:

Power Supply: 230 V AC / +10 % … -15 % / 50 … 60 Hz

Force: 200 N

Nominal locking force: 2000 N

Stroke: 250 – 350 mm

Protection Class: IP30

Colours Available:

Available in Silver

Silver

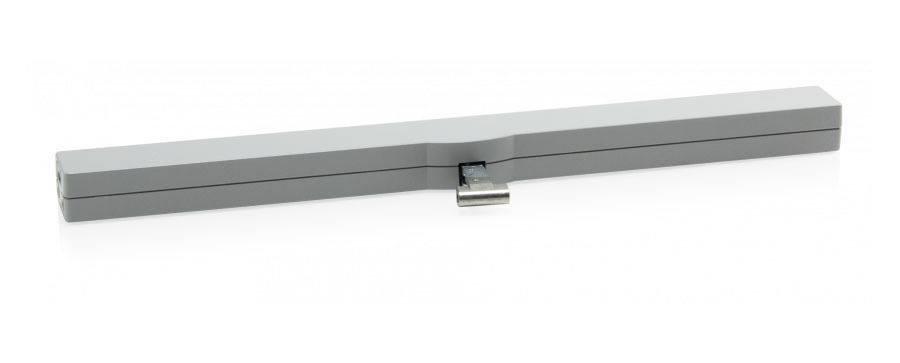

D+H VCD-0204-5-ACB
Compared to the 24 V version, the D+H VCD-0204-5-ACB can be supplied using significantly smaller cable cross-sections, which reduces costs. Like the other ACB drives, up to 32 drives can be addressed separately on a single line thanks to virtual grouping.

For façade windows, roof windows and ventilation flaps in conservatories
With integrated BSY+ motor and synchronised electronics controlled via microprocessor
Direct control via 230 V AC
Special chain stabilisation and centred chain outlet
Option of up to 8 drives in one synchronous group
Simple connection via plug connector
Programmable drive functions and different drive parameters
Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection)
Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)
Integrated ACB (Advanced Communication Bus) bus interface with Modbus RTU protocol
The drive is integrated directly via open bus communication through the ACB (Advanced Communication Bus), e.g. in a building management system

Brand

Product Applications

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion

Technical Details

Model:

VCD-0204-5-ACB
Power Supply:

230 V AC / +10 % … -15 % / 50 … 60 Hz
Force of pressure:

200 N
Tensile force:

200 N
Nominal locking force:

2000 N
OPEN running speed:

6 mm/s
CLOSED running speed:

6 mm/s
Stroke:

250 – 350 mm
Protection:

IP 30
Temperature range:

0 °C … +60 °C
Connection:

2.5 m PVC-cable
W x H x D:

480 x 30 x 47 mm
