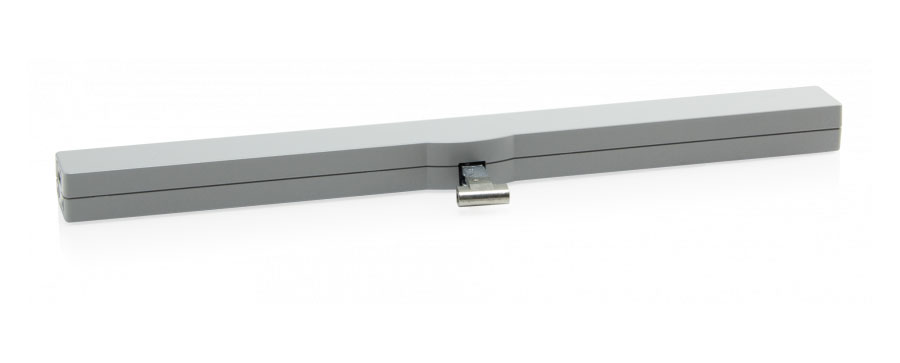

D+H VCD-0204-1-ACB

Call us for latest pricing

Brand: D+H | Manufacturer Part numbers: VCD-0204-0250-1-ACB M1-M, VCD-0204-0350-1-ACB M1-M

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion
Specifications at a glance:

Power Supply: 24 V DC / ?20 % / 0.35 A

Force: 200 N

Nominal locking force: 2000 N

Stroke: 250 – 350 mm

Protection Class: IP30

Colours Available:

Available in Silver

Silver

D+H VCD-0204-1-ACB
D+H set for larger ventilation windows with a safety cut-off: Two chain drives in tandem operation communicate with each other in the D+H VCD 204-TMS+ Set and work together to ensure twice the force. Power supply that can be looped.

For façade windows, roof windows and ventilation flaps in conservatories
With motor electronics controlled via microprocessor
Special chain stabilisation and centred chain outlet
“TMS+” tandem safety function for operating 2 drives on one sash
Option of chain stroke programming via magnet
Reprogrammed opening stroke is transmitted to the tandem drive
Direct cable guidance between the drives for visually appealing solution
Simple connection via plug connector
D+H VCD-0204-1-ACB Programmable drive functions and different drive parameters
Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection)
Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)

Brand

Product Applications

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion

Technical Details

Model:

VCD-0204-1-ACB
Power Supply:

24 V DC / ±20 % / 0.35 A
Force of pressure:

200 N
Tensile force:

200 N
Nominal locking force:

2000 N
OPEN running speed:

6 mm/s
CLOSED running speed:

6 mm/s
Stroke:

250 – 350 mm
Protection:

IP 30
Temperature range:

0 °C … +60 °C
Connection:

2.5 m PVC-cable
W x H x D:

480 x 30 x 47 mm
