D+H SHD 54 – Chain Drive

Call us for latest pricing

Brand: D+H | Manufacturer Part numbers: SHD

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion
Specifications at a glance:

Power Supply: 24 V DC / ?15 % / 1 A

Force: 500 N

Protection Class: IP50

Colours Available:

Available in White

White

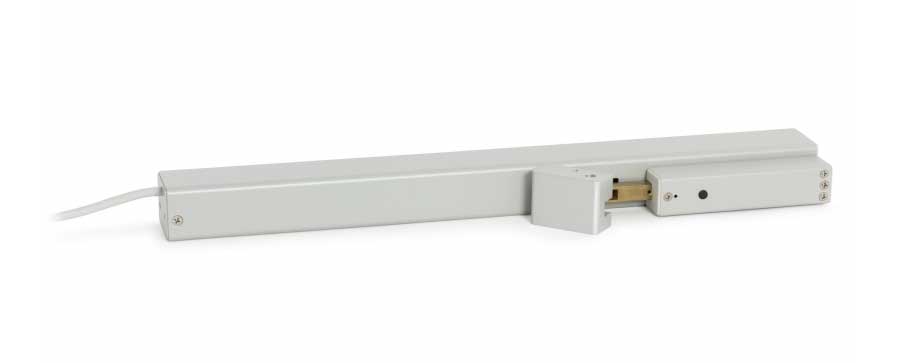

D+H SHD 54
This window drive can do it all: The SHD 54 side-hung vent drive opens sashes up to 1.2 m x 1 m large up to 65° in less than 30 seconds.

For opening and closing side‑hung vents
For sash sizes to 1.2 x 1 m
With motor electronics controlled via microprocessor
Opening the windows to 65° in less than 30 sec.
Locking mechanism for the window in conjunction with window locking drive (optional)
Configurable locking direction on the drive
Programmable drive functions and different drive parameters
D+H SHD 54 Bracket set included

Brand

Product Applications

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion

Technical Details

Model:

SHD 54
Power Supply:

24 V DC / ±15 % / 1 A
Force of pressure:

500 N
Tensile force:

500 N
OPEN running speed:

11.8 mm/s
OPEN running speed – SHEV:

11.8 mm/s
CLOSED running speed:

15.2 mm/s
Protection:

IP 32
Emission sound pressure level:

LpA ≤ 70 dB(A)
Temperature range:

-15 °C (-5 °C *) … +75 °C
Fire resistance:

B300 (30 min / 300 °C)
Housing:

Aluminium
Connection:

2.5 m silicone cable
W x H x D:

500 x 40 x 115 mm

Download PDF's

SHD 54 Instructions
