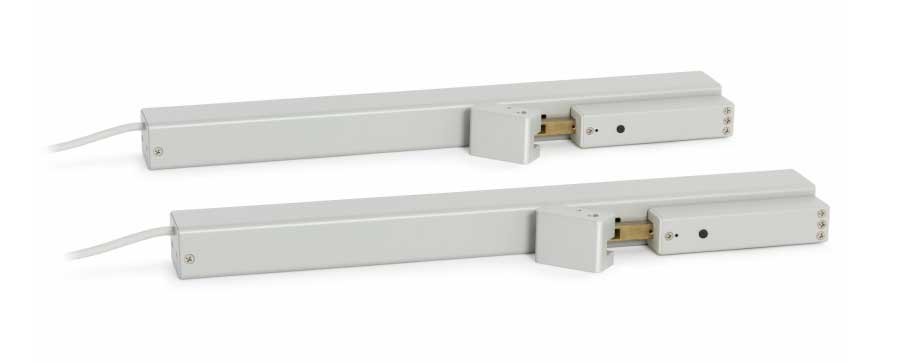

D+H SHD 54-BSY+ Set
Bundled power: D+H SHD 54-BSY+ side-hung vent drive set consists of two drives that are installed above or below the window sashes. In comparison to the SHD 54, it can open windows with dimensions of up to 1.2 m x 2 m.

For opening and closing wide side‑hung vents
For sash sizes to 1.2 x 2 m
Synchronised dual chain drive set
With motor electronics controlled via microprocessor
Opening the windows to 65° in less than 30 sec.
Locking mechanism for the window in conjunction with window locking drive (optional)
Configurable locking direction on the drive
Programmable drive functions and different drive parameters
D+H SHD 54-BSY+ Set Bracket set included

Additional information

Stroke (mm)

Programmable, 450

Max Force (N)

500

Supply Voltage

24Vdc

Max Current (amps)

1.00

Max Speed (mm/s)

15.20

Window Types

Side Hung

IP Rating

IP50

Manufacturer

Colour/Finish

White Aluminium (RAL 9006)

Brand

Product Applications

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion

Technical Details

Model:

SHD 54-BSY+ Set
Power Supply:

24 V DC / ±15 % / 1 A
Force of pressure:

500 N
Tensile force:

500 N
OPEN running speed:

11.8 mm/s
OPEN running speed – SHEV:

11.8 mm/s
CLOSED running speed:

15.2 mm/s
Protection:

IP 32
Emission sound pressure level:

LpA ≤ 70 dB(A)
Temperature range:

-15 °C (-5 °C *) … +75 °C
Fire resistance:

B300 (30 min / 300 °C)
Housing:

Aluminium
Connection:

2.5 m silicone cable
W x H x D:

500 x 40 x 115 mm
