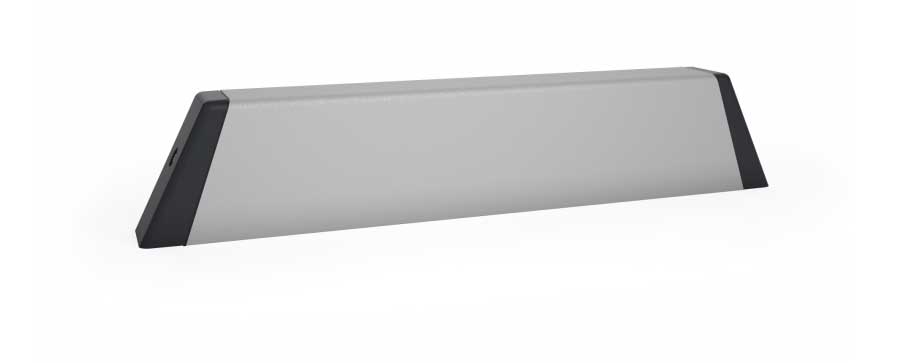

Brand: D+H | Manufacturer Part numbers: LDx-5
- Louver windows
Power Supply: 230 V AC / +10 % … -15 % / 50 Hz
Force: 1800 N
Nominal Locking Force: 5000 N
Protection Class: IP40
Options listed in Download Pdf below.
Get in touch for help picking the right brackets for your window.
Call 01702 826267 to order or for advice
Next Day Delivery on 100s of Products
Free for Trade & Public
Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

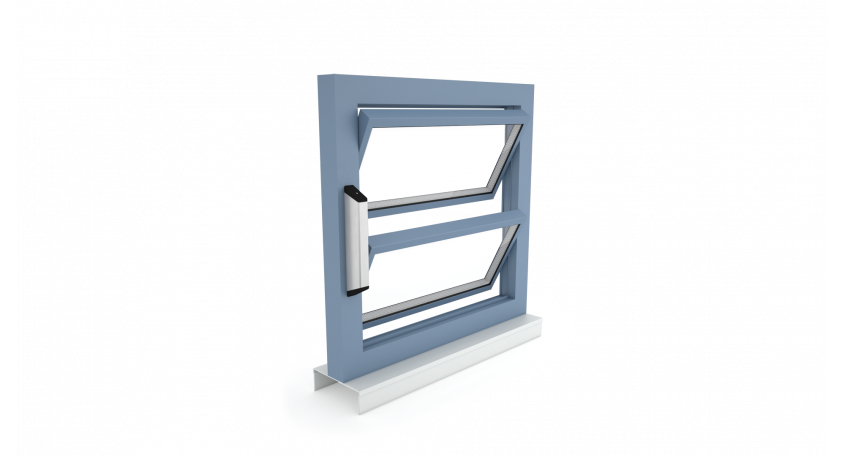

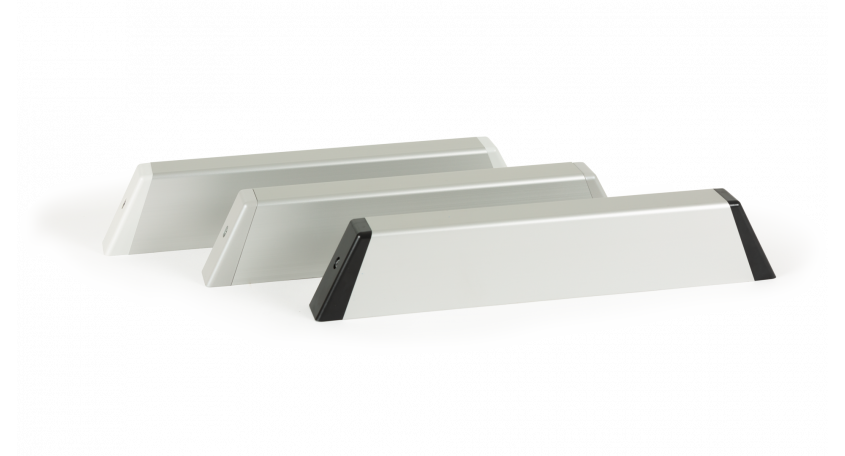

The LD Series is extremely versatile. Thanks to an adapter for louvre-specific or centred driver mounting, these drives are suitable for virtually any louvres. Compared to the LDx-1-PLP, this louvre drive features an integrated 230 V power supply unit.
Max. force of pressure and tensile force of 1400 N and 1800 N
Holding force of 5000 N for very large louvre windows
Direct control via 230 V AC
Louvre window drive can be adapted for all common louvre manufacturers (such as EuroLam, Fieger, HAHN, NACO, Schneider + Nölke)
Centrally supported driver position
Developed based on DIN EN 12101-2
Can be used for openings for smoke exhaust and for daily ventilation
With motor electronics controlled via microprocessor
With a sound pressure level of LpA ≤ 45 dB(A), the drive is among the quietest of its class
Corrosion‑protected drive components
Additional passive and active anti‑trap protection system for the main closing edges with reversing function
Order Now by Phone
The range of manual and electric window openers is vast and choosing the right solution depends on your needs. Our website carries just a sample of the most popular products we sell, but by no means covers everything we stock or can supply. It is always best to call us and we will help you confirm if it is the correct product for your exact needs.
To Order Dial: 01702 826 267
This product is suitable for:
