D+H DXD 300-BSY+ HS
D+H powerful devices combine endurance and power. Our DXD 300-BSY+ has a service life of 20000 double strokes and a force of pressure of 3000 N. Four rack and pinion drives can be controlled in synchronisation.

Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
With integrated BSY+ motor and synchronised electronics controlled via microprocessor
High‑speed function (HS) for especially fast opening windows in case of fire (SHEV)
Option of up to 4 drives in one synchronous group
Groove in the drive tube for flexible installation and configuration of the swivel range
Option of cable infeed above and below
Programmable drive functions and different drive parameters
Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection)
Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)

Additional information

Manufacturer

Brand

Product Applications

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion

Technical Details

Model:

DXD 300-BSY+ HS
Power Supply:

24 V DC / ±15 %

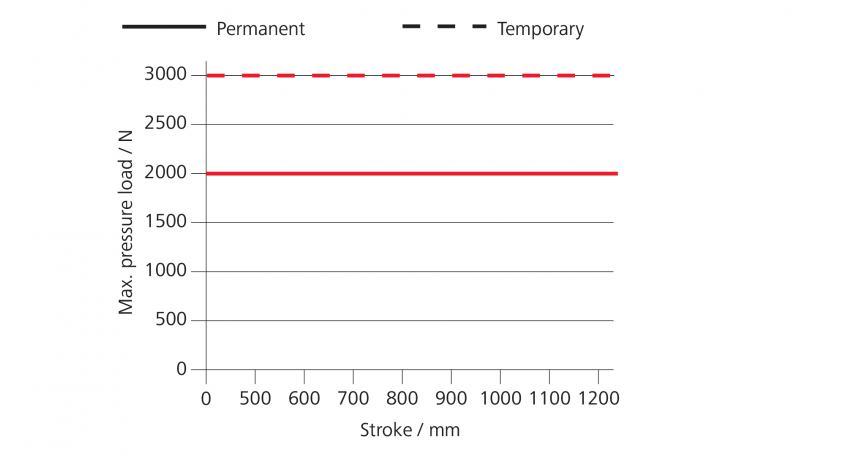

Force of pressure:

3000 N
Tensile force:

2000 N
Nominal locking force:

Max. 2800 N
Stroke:

500 – 1500 mm
OPEN running speed:

7.1 mm/s
OPEN running speed – SHEV:

17 mm/s
CLOSED running speed:

7.1 mm/s
Protection:

IP 64
Temperature range:

-15 °C (-5 °C ***) … +75 °C
Emission sound pressure level:

LpA ≤ 51 dB(A)
Fire Resistance:

B300 (30 min / 300 °C)
Connection:

2.5m silicone cable

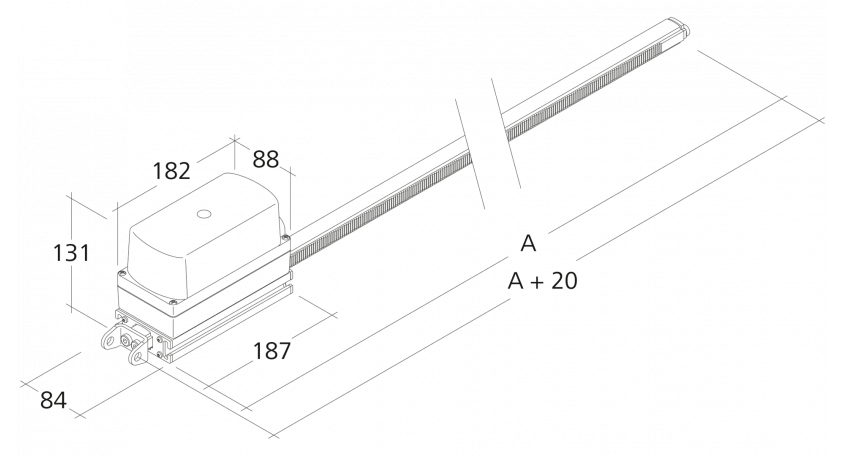

Dimension:

A: 706 – 1706 mm
