D+H CDP-TW 3000-BSY+

Call us for latest pricing

Brand: D+H | Manufacturer Part numbers: CDP-TW-BSY+

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion
Specifications at a glance:

Power Supply: 24 V DC / ?15 % / 8 A

Force: 3000 N

Nominal locking force: 6000 N

Protection Class: IP32

Colours Available:

Available in Silver

Silver

D+H CDP-TW 3000-BSY+
D+H’s most powerful SHEV chain drive: The CDP-TW 3000-BSY+ for very large glass designs is used in shopping malls, airports and everywhere else there is a need for maximum force and the toughest architectural demands.

Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
With integrated BSY+ motor and synchronised electronics controlled via microprocessor
High‑speed function (HS) for especially fast opening windows in case of fire (SHEV)
Option of up to 4 drives in one synchronous group
Symmetrical chain outlet for easy installation
Relief of pressure on window gasket after closing process
Programmable drive functions and different drive parameters
Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection)
Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)

Brand

Product Applications

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion

Technical Details

Model:

CDP-TW 3000-BSY+
Power Supply:

24 V DC / ±15 % / 8 A
Force of pressure:

3000 N
Tensile force:

3000 N
Nominal locking force:

6000 N
Stroke:

600 – 1500 mm
OPEN running speed:

6 mm/s
OPEN running speed – SHEV:

17.7 mm/s
CLOSED running speed:

6 mm/s
Protection:

IP 32
Temperature range:

-5 °C … +75 °C
Connection:

2.5m silicone cable

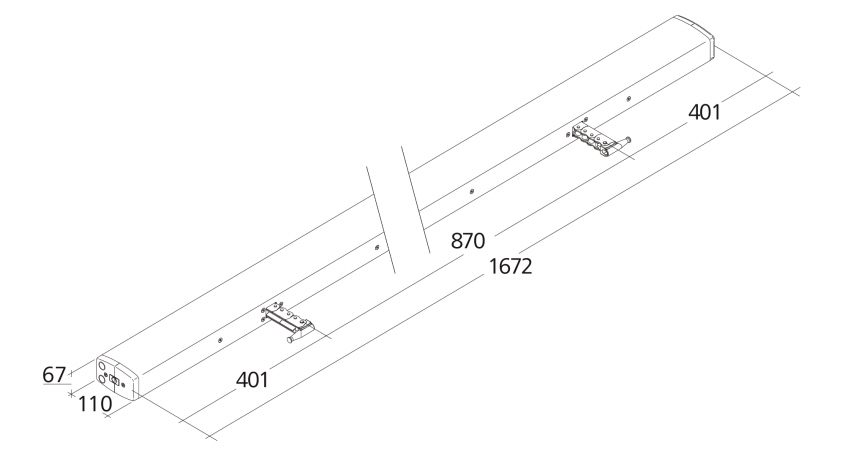

W x H x D:

A: 1672 / 2002 mm B: 870 / 1200 mm
Fir Resistance:

B300 (30 min / 300 °C)

Download PDF's

CDP-TW 3000-BSY+ Instructions
