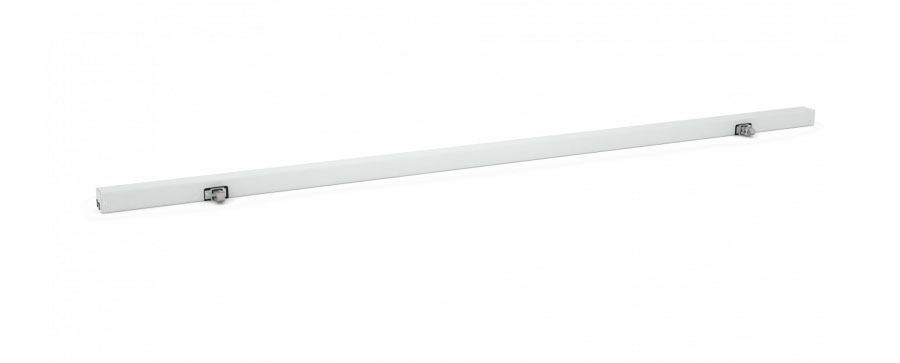

D + H CDC-TW-0502-0800-1-ACB

By: Joseph

Brand: D+H | Manufacturer Part numbers:  CDC-TW-1-ACB

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion
Specifications at a glance:

Power Supply: 24 V DC / ±15 % / 1.6 A
Force: 500 N
Nominal locking force: 3000 N
Protection Class: IP32

Colours Available:

Available in Silver
Silver


Bracket Options:
Options listed in Download Pdf below.
Get in touch for help picking the right brackets for your window.

NOT SURE IF THIS IS EXACTLY RIGHT?
Call 01702 826267 to order or for advice
CALL TO ORDER NOW
Next Day Delivery on 100s of Products
EXPERT ADVICE
Free for Trade & Public

Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

Description

Double the power and a consistent load distribution on the window sash: The CDC-TW-0502-0800-1-ACB features two chains, each with a stroke of 800 mm. As a result, it can open very large windows.

Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
Low running noises thanks to the innovative acoustic decoupling of the drive components
Two drive chains for optimal power application to the sash
Connection from either the left or the right side is possible (supply includes BUS signals)
Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)
Available in all RAL colours
Integrated ACB (Advanced Communication Bus) bus interface with Modbus protocol
The drive is integrated directly via open bus communication through the ACB (Advanced Communication Bus), e.g. in a building management system

Buy Now

Free Live Product Support - help finding window opener products

Order Now by Phone

The range of manual and electric window openers is vast and choosing the right solution depends on your needs. Our website carries just a sample of the most popular products we sell, but by no means covers everything we stock or can supply. It is always best to call us and we will help you confirm if it is the correct product for your exact needs.

To Order Dial: 01702 826 267

Brand

Product Applications

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion

Technical Details

Model:

CDC-TW-0502-0800-1-ACB

Power Supply:

24 V DC / ±15 % / 2 A

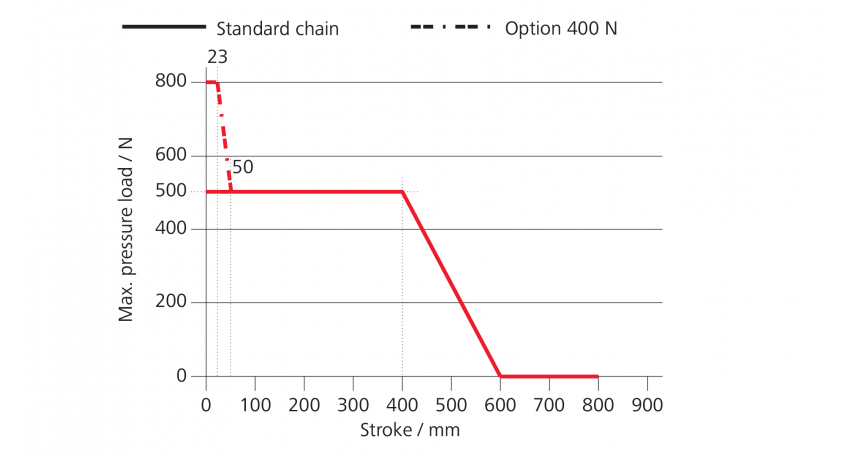

Force of pressure:

500 N

Tensile force:

500 N

Nominal locking force:

3000 N

OPEN running speed:

6.7 mm/s

OPEN running speed – SHEV:

15 mm/s

CLOSED running speed:

6.7 mm/s

Stroke:

800 mm

Protection:

IP 32

Temperature range:

-5 °C … +75 °C

Connection:

2.5 m silicone cable

W x H x D:

1265 x 30 x 39 mm

Download PDF's

CDC-TW-0502-0800-1-ACB Instructions
