D + H CDC-0252-0800-1-TMS+

By: Joseph

Brand: D+H | Manufacturer Part numbers:  CDC-0252-0800-1-TMS+ -R

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion
Specifications at a glance:

Power Supply: 24 V DC / ±15 % / 1.0 A
Force: 250 N
Nominal locking force: 1500 N
Protection Class: IP32

Colours Available:

Available in White

Bracket Options:
Options listed in Download Pdf below.
Get in touch for help picking the right brackets for your window.

Call 01702 826267 to order or for advice
Next Day Delivery on 100s of Products
Free for Trade & Public

Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267


Incredibly quiet and hardly visible: the CDC-0252-0800-1-TMS+ is the largest drive of the CDC-TMS+ series at a stroke of 800 mm. As in the smaller variants, the noise emission during opening and closing have been reduced to extremely low 35 dB(A) so that the drive is barely audible.

Perfectly suited for profile integrated and surface mounted installation
Low running noises thanks to the innovative acoustic decoupling of the drive components
Universal bracket sets for installation of all commonly available profile systems
With motor electronics controlled via microprocessor
“TMS+” tandem safety function for operating 2 drives on one sash
Option of chain stroke programming via magnet
Reprogrammed opening stroke is transmitted to the tandem drive
Programmable drive functions and different drive parameters
Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection)
Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)

Buy Now

Free Live Product Support - help finding window opener products

Order Now by Phone

The range of manual and electric window openers is vast and choosing the right solution depends on your needs. Our website carries just a sample of the most popular products we sell, but by no means covers everything we stock or can supply. It is always best to call us and we will help you confirm if it is the correct product for your exact needs.

To Order Dial: 01702 826 267


Product Applications

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion

Technical Details


Power Supply:
24 V DC / ±15 % / 1.0 A

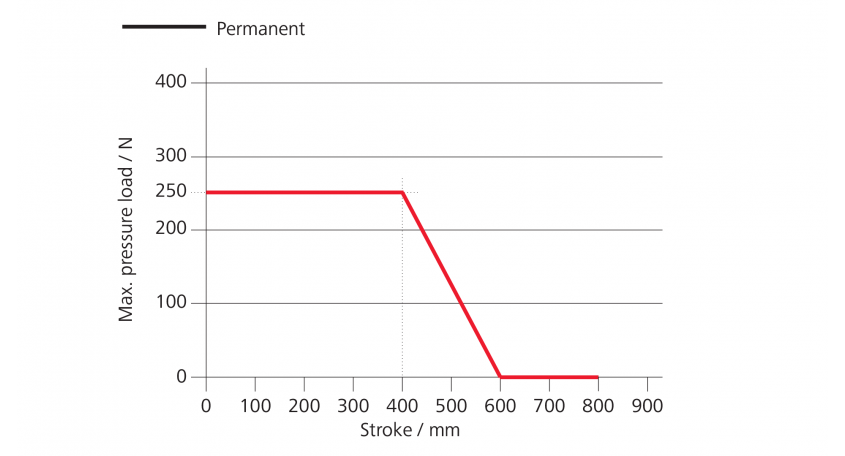

Force of pressure:
250 N

Tensile force:
250 N

Nominal locking force:
1500 N

OPEN running speed:
6.7 mm/s

OPEN running speed – SHEV:
15 mm/s

CLOSED running speed:
6.7 mm/s

IP 32

Temperature range:
-5 °C … +75 °C

2.5 m silicone cable

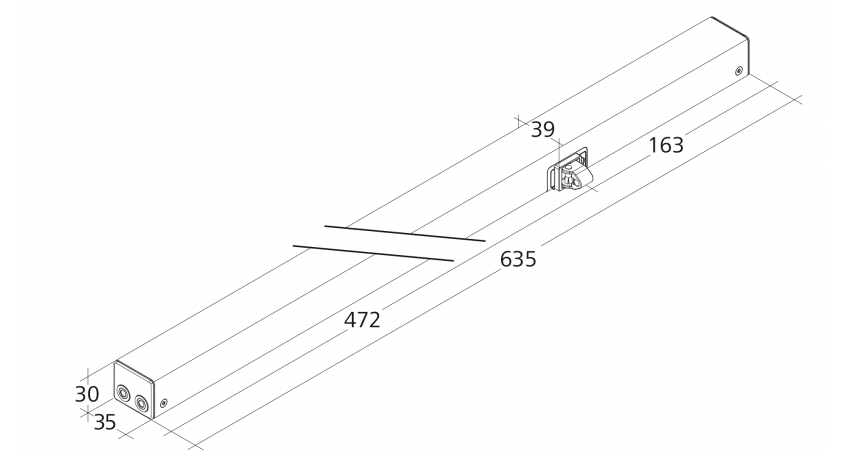

W x H x D:
635 x 30 x 39 mm

Download PDF's

CDC-0252-0800-1-TMS+ Instructions
