D+H CDC-0252-0600-1-ACB

Call us for latest pricing

Brand: D+H | Manufacturer Part numbers: CDC-0252-0500-1-ACB M1-R, CDC-0252-0500-1-ACB M1-L, CDC-0252-0500-1-ACB M2-R, CDC-0252-0500-1-ACB S1-L, CDC-1-ACB

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion
Specifications at a glance:

Power Supply: 24 V DC / 15 % / 0.8 A

Force: 250 N

Nominal locking force: 1500 N

Protection Class: IP32

Colours Available:

Available in Silver


Product Information

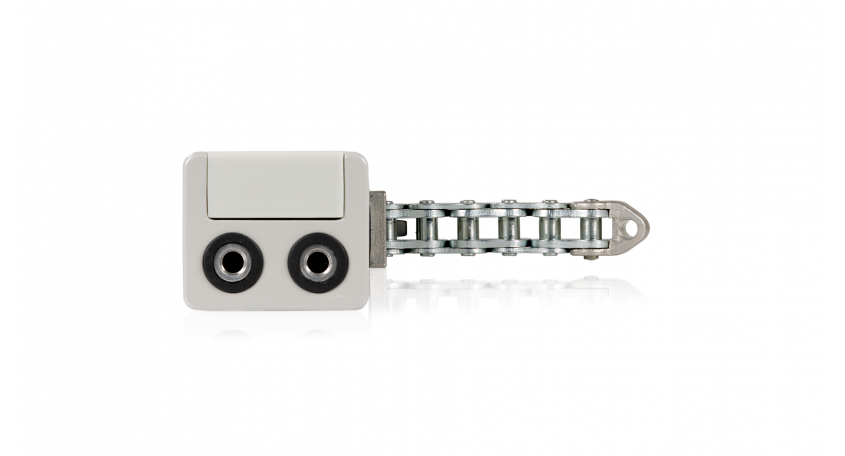

D+H CDC-0252-0600-1-ACB
Incredibly quiet and nearly invisible: The D+H CDC-0252-0600-1-ACB chain drive with a stroke of 600 mm can be integrated into wood, aluminium and plastic profiles. Thanks to smart decoupling in the drive technology, it is virtually silent.

Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
Perfectly suited for profile integrated and surface mounted installation
Low running noises thanks to the innovative acoustic decoupling of the drive components
Universal bracket sets for installation of all commonly available profile systems
Flexible overall lengths for customised strokes
Available in all RAL colours
Can be used for virtually all window opening types thanks to the left and right drive
D+H CDC-0252-0600-1-ACB Integrated ACB (Advanced Communication Bus) bus interface with Modbus protocol
The drive is integrated directly via open bus communication through the ACB (Advanced Communication Bus), e.g. in a building management system

Additional information



Product Applications

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion

Technical Details

Power Supply:
24 V DC / ±15 % / 0.8 A
Force of pressure:
250 N
Tensile force:
250 N
Nominal locking force:
1500 N
OPEN running speed:
6.7 mm/s
OPEN running speed – SHEV:
13.6 mm/s
CLOSED running speed:
6.7 mm/s
IP 32
Temperature range:
-5 °C … +75 °C
2.5 m silicone cable

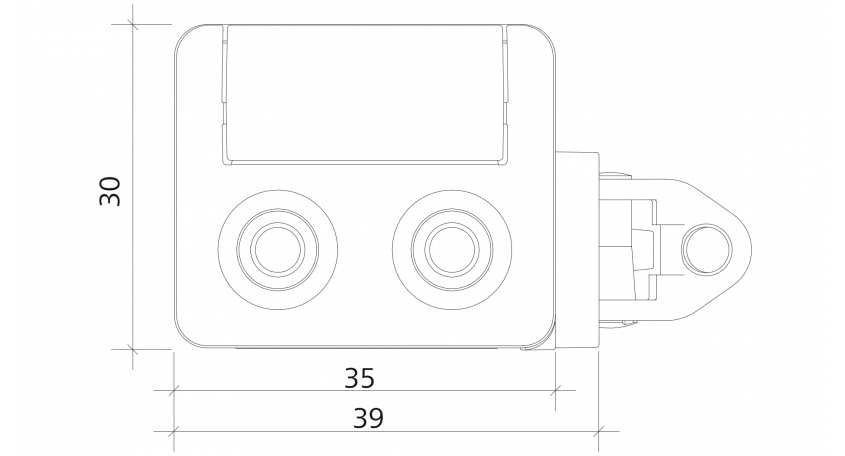

W x H x D:
530 x 30 x 39 mm

Download PDF's

CDC-0252-0600-1-ACB Instructions
