D+H CDC-0252-0500-1-ACB

Call us for latest pricing

Brand: D+H | Manufacturer Part numbers: CDC-0252-0500-1-ACB M1-R, CDC-0252-0500-1-ACB M1-L, CDC-0252-0500-1-ACB M2-R, CDC-0252-0500-1-ACB S1-L, CDC-1-ACB

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion
Specifications at a glance:

Power Supply: 24 V DC / ?15 % / 0.8 A

Force: 250 N

Nominal locking force: 1500 N

Protection Class: IP32

Colours Available:

Available in Silver

Silver

D+H CDC-0252-0500-1-ACB

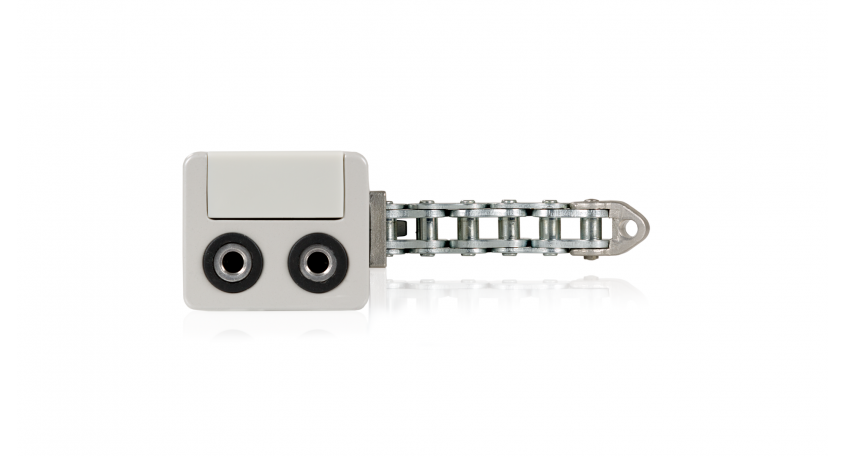

Universal chain drive for profile-integrated or mounted installations: The CDC-0252-0500-1-ACB meets up-to-date design and function requirements. Featuring a 500 mm stroke, it makes virtually no noise when opening and closing your windows thanks to intelligent drive technology.

Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
Perfectly suited for profile integrated and surface mounted installation
Low running noises thanks to the innovative acoustic decoupling of the drive components
Universal bracket sets for installation of all commonly available profile systems
Flexible overall lengths for customised strokes
Available in all RAL colours
Can be used for virtually all window opening types thanks to the left and right drive
Integrated ACB (Advanced Communication Bus) bus interface with Modbus protocol
The drive is integrated directly via open bus communication through the ACB (Advanced Communication Bus), e.g. in a building management system.

Brand

Product Applications

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion

Technical Details

Model:

CDC-0252-0500-1-ACB
Power Supply:

24 V DC / ±15 % / 0.8 A

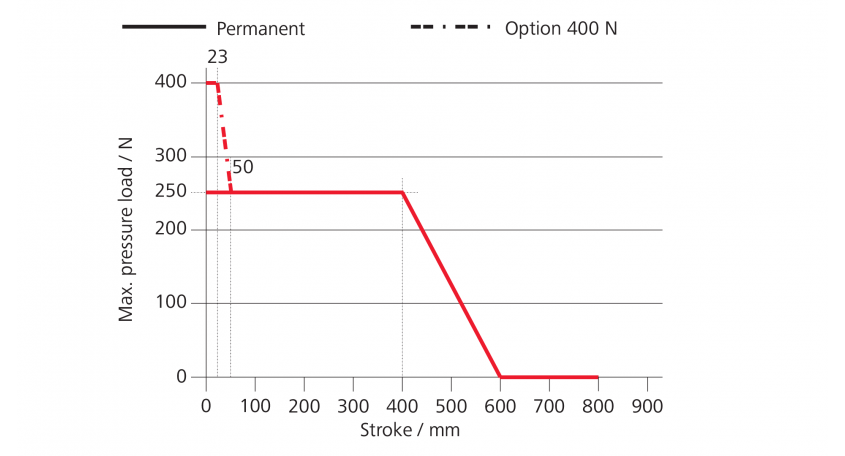

Force of pressure:

250 N
Tensile force:

250 N
Nominal locking force:

1500 N
OPEN running speed:

6.7 mm/s
OPEN running speed – SHEV:

13.6 mm/s
CLOSED running speed:

6.7 mm/s
Protection:

IP 32
Temperature range:

-5 °C … +75 °C
Connection:

2.5 m silicone cable
W x H x D:

485 x 30 x 39 mm

Download PDF's

CDC-0252-0500-1-ACB Instructions
