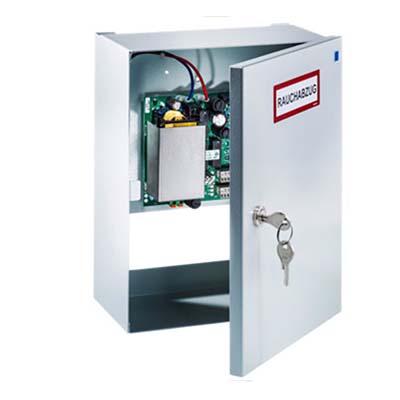

Aumuller Compact Control Unit EMB7300 0101 – 2.5A/5A/10A

Call us for latest pricing

Easily mounted, Perfectly integrated, The EMB7300 0101 compact control unit from AUMÜLLER can be used in SHEV systems with a single SHEV/ventilation group. Controlling 24V power supply to the window actuators, with numerous versions with output currents from 2.5 A to 10.0 A available.

Our compact energy sources: use our compact control units to control 24 V DC electromotive window operators. Open and close windows for SHEV or controlled natural ventilation in small to medium sized building sections such as stairwells.

Ready to use, when, where and how you want. The area of application adapts to your wishes and ranges from simple stairwells to complex smoke and heat ventilation systems with data-bus network technology and decentralised power supply.

Building Automation in Perfection. Use all functions of modern, future-orientated building automation.
Our solutions help you reduce the amount of wiring needed and minimize installation costs.

Both smoke and heat exhaust ventilation or natural ventilation: our control units offer the best solution for your electric window opening.

Technical Details

EMB7300 2.5A 0101EMB7300 5A 0101EMB7300 10A 0101
Zones1x SHEV & 1xVentilation Group1x SHEV & 1xVentilation Group1x SHEV & 1xVentilation Group
Operating Voltage230Vac (195-253Vac, 50/60 Hz)230Vac (195-253Vac, 50/60 Hz)230Vac (195-253Vac, 50/60 Hz)
Output Voltage24Vdc24 Vdc24Vdc
Output Current2.5A5A10A
Ambient Temperature-5°C … +40°C-5°C … +40°C-5°C … +40°C
Ingress ProtectionIP30IP30IP30; IP54 w/optional mount and brackets
HousingSurface Mounted, Steel PlateSurface Mounted, Steel PlateSurface Mounted, Steel Plate
Dimensions (WxHxD)225 x 285 x 122 mm225 x 285 x 122 mm400 x 300 x 150 mm
Prepared for Emergency Batteries2 x 12V / 2.3Ah2x 12V / 2.3Ah2x 12V / 7Ah
Connection Terminals1.5mm2 / Drives: 4mm2 (rigid)1.5mm2 / Drives: 4mm2 (rigid)1.5mm2 / Drives: 4mm2 (rigid)
