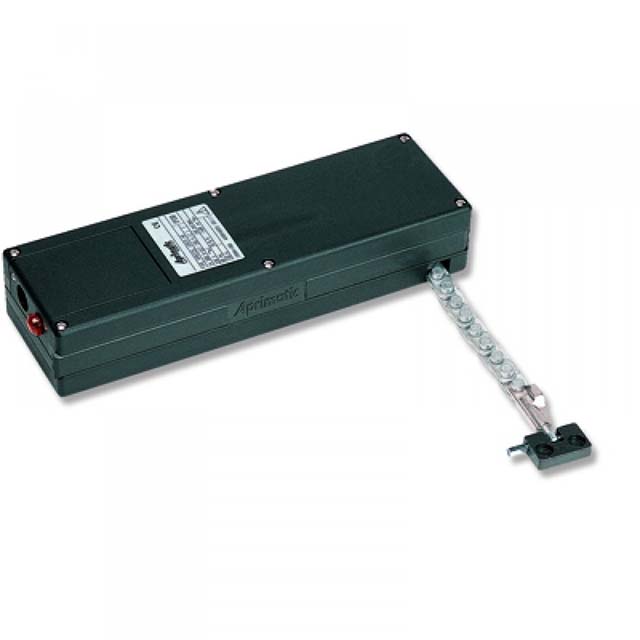

Aprimatic APRICOLOR VARIA CHAIN OPERATOR
Chain operator for bottom-hinged and outward-opening windows.
Exclusive quick-fit system securing the operator to the frame.
Aprimatic Apricolor VARIA is an electromechanical chain operator with internal nylon magazine.
It is suitable for bottom-hinged and outward-opening applications, and features an adjustable stroke from 90 to 400 mm.
230 V and 24 V operation. It can be connected in parallel. The chain is rust-proof thanks to the Dacro-met coating.
Additional information
| Stroke (mm) | Selectable, 90, 400 |
|---|---|
| Max Force (N) | 300 |
| Supply Voltage | 230Vac |
| Max Current (amps) | 0.80 |
| Max Speed (mm/s) | 40.00 |
| Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
| IP Rating | IP20 |
| Manufacturer | |
| Colour/Finish | Black (RAL 9005), Grey (RAL 9006), White (RAL 9010) |
Brand
Aprimatic
Product Applications
|
This product is suitable for:
|
Technical Details
Model:
APRICOLOR VARIA
Power Supply:
230 Vca – 24 Vcc
Absorbed Power:
150 W – 40 W
Absorbed Current:
0,8A in ca/1,8 in cc
Thrust Force:
150 N
Traction Force:
300 N
Adjustable Strokes:
from 90 to 400 mm
Shifting Speed:
40 mm/s
Front Adjustment:
max. 10 mm
Parallel Connection:
Yes
Overload Protection::
100° C (only 230 V versions)
Capacitor:
4 μF
Built in Relay::
YES
Light Indicator:
Yes
Removable Terminal Board:
Yes
Protection Class:
IP20
Operator Weight:
1.7 Kg
