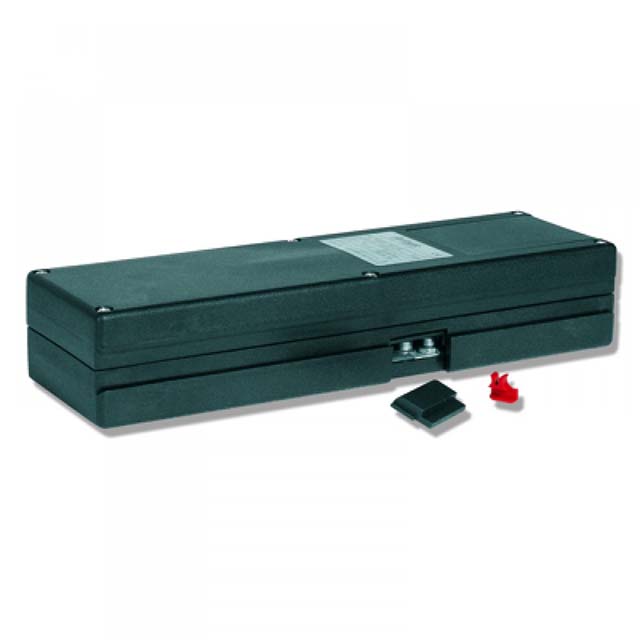

Aprimatic APRICOLOR VARIA T CHAIN OPERATOR
Chain operator for bottom-hinged and outward-opening windows.
Exclusive quick-fit system securing the operator to the frame.
Aprimatic Apricolor VARIA T is an electromechanical chain operator with internal nylon magazine.
It is suitable for bottom-hinged and outward-opening applications, and features an adjustable stroke from 90 to 400 mm.
230 V and 24 V operation. It can be connected in parallel. The chain is rust-proof thanks to the Dacro-met coating.
The Aprimatic Apricolor VARIA T is designed for twin mounting on single windows with width over 1600 mm.
Aprimatic Apricolor VARIA T stands out for its overload protection, shared between the two parallel-connected operators. If one of the two trips, the other stops its motion, thus protecting the frame from torsional stresses.
Additional information
| Stroke (mm) | Selectable, 90, 400 |
|---|---|
| Max Force (N) | 300 |
| Supply Voltage | 230Vac |
| Max Current (amps) | 0.80 |
| Max Speed (mm/s) | 40.00 |
| Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
| IP Rating | IP20 |
| Manufacturer | |
| Colour/Finish | Black (RAL 9005), Grey (RAL 9006), White (RAL 9010) |
Brand
Aprimatic
Product Applications
|
This product is suitable for:
|
